Networking
| Supports ISDN connection |
N |
Security
| Firewall security |
SPI |
| VPN support |
VPN Pass-through (IPSec, PPTP, L2TP) |
| MAC address filtering |
Y |
Other features
| Supported data transfer rates |
ADSL: 12/24 Mbps |
| Downstream data rate |
1.5 Mbit/s |
| Upstream data rate |
0.512 Mbit/s |
| Maximum data transfer rate |
0.125 Gbit/s |
| Electromagnetic emissions |
FCC Class B, CE Class B |
| Management platform |
Web based |
| xDSL connection |
Y |
| Number of users |
253 user(s) |
| Data transfer rate |
100 Mbit/s |
| Frequency range |
2400 - 2483.5 MHz |
DSL features
| DSL specification |
ITU-T G.992.3/ADSL2+ (ITU-T G.992.5); G.DMT (ITU-T G.992.1); T1.413 Issue 2; G.lite (ITU-T G.992.2); DSL handshaking (ITU-T G.994.1); RFC 2516; RFC 2364; RFC 2684 |
| ADSL |
Y |
Certificates
| Safety |
CE Class B, UL, CUL |
System requirements
| Minimum RAM |
64 MB |
| Minimum processor |
Pentium II 266MHz |
Protocols
| Supported network protocols |
PPPoE, PPTP |
Wireless LAN features
| Channels quantity |
13 channels |

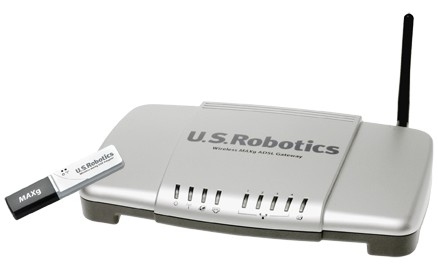

Wireless MAXg ADSL2+ Networking Kit
Everything you need to connect to, and share, your ADSL Internet service
This USRobotics MAXg™ Wireless ADSL2+ Networking Kit includes everything you need to connect to and share your ADSL Internet service, and bring the benefits of high-performance wireless networking to your home or business. The Wireless MAXg ADSL2+ Gateway integrates the latest ADSL and MAXg wireless technologies for a complete home or small business broadband network. MAXg technology delivers a 50% range improvement over standard 802.11g and provides wireless speeds of up to 125 Mbps, while support for ADSL2+ assures you optimal ADSL speeds up to 24 Mbps† and the integrated USB printer server allows you to share/network compatible USB printers‡. When combined with the flexible Wireless MAXg USB Adapter, which can be plugged into a laptop or desktop PC, and a full complement of security capabilities, wireless networking has never been simpler or more convenient!
Six products in one
ADSL2+ Modem, MAXg Access Point, 4-Port Router, Firewall, USB Print Server and MAXg USB Adapter.
Share USB Printers
Integrated print server turns a supported USB printer into a network printer which can be shared among all network users.
Advanced ADSL Technology
- Support for the latest ADSL standards including ADSL2 and ADSL2+, for advanced speeds.
- ATM QoS support for high quality Video over DSL (Bind ATM traffic to any Ethernet port).
MAXg Technology
- MAXimum Range – 50% greater than standard 802.11g.
- MAXimum Speed – 125 Mbps performance.
- MAXimum Security – Industry leading security protects your network from hackers and unauthorized access from the Internet and from wireless interlopers.
- MAXimum Simplicity – Simple 1-2-3 configuration will have you up and running in minutes and the Web-based diagnostics and connection monitoring software sets a new standard for convenience and ease of use.
Complete Suite of Security Measures
- Wi-Fi Protected Access 2 (WPA2)/802.11i and WPA.
- 802.1x Authentication.
- 64/128-bit WEP encryption.
- Stateful Packet Inspection (SPI) firewall to prevent network intrusions.
- Support for VPN pass through (PPTP, IPSec and L2TP).
- MAC address authentication and SSID disable.
Support for Virtual Private Networks
- Establish secure connections over the Internet for access to corporate network resources (i.e. servers, databases, email, etc.).
- Support for Virtual Private Networks (VPN) pass-through (PPTP, IPSec and L2TP).
- Upgradable to support VPN (IPSec) termination.
Flexibility
- USB Adapter works with laptop & desk PCs, delivering high performance with a USB 2.0 interface.
- Also, USB Adapter Swivel/Directional antenna provides better coverage.
- Router has detachable antenna with reverse SMA connector for attaching higher gain optional antennas.
Excellent Compatibility
Complete compatibility with standard 802.11b, 802.11g and accelerated wireless technologies.
