Networking
| Supports ISDN connection |
N |
Security
| Firewall security |
SPI |
| VPN support |
VPN Pass-through (IPSec, PPTP, L2TP) |
| MAC address filtering |
Y |
Other features
| Supported data transfer rates |
Ethernet: 10/100 Mbps |
| Maximum data transfer rate |
0.125 Gbit/s |
| Electromagnetic emissions |
FCC Class B, CE Class B |
| xDSL connection |
N |
| Number of users |
253 user(s) |
| Data transfer rate |
54 Mbit/s |
| Frequency range |
2400 - 2483.5 MHz |
Certificates
| Safety |
UL, CUL, CE Class B |
System requirements
| Minimum RAM |
64 MB |
| Minimum processor |
Pentium II 266MHz |
Wireless LAN features
| Channels quantity |
13 channels |

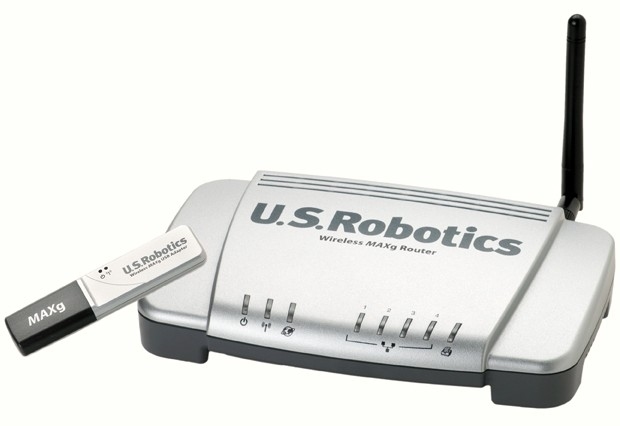

Wireless MAXg Networking Kit
This USRobotics Wireless MAXg™ Networking Kit includes everything you need to share your broadband connection and bring the benefits of high-performance wireless networking to your home or business. The Wireless MAXg Router delivers excellent range and performance (up to 125 Mbps) and features an integrated USB printer server for sharing compatible USB printers. When combined with the flexible Wireless MAXg USB Adapter, which can be plugged into a laptop or desktop PC, and a full complement of security capabilities, wireless networking has never been simpler or more convenient!
Five products in one
MAXg Access Point, 4-Port Router, Firewall, USB Print Server and MAXg USB Adapter.
Share USB Printers
Integrated print server turns a supported USB printer into a network printer which can be shared among all network users.
MAXg Technology
MAXimum Range – 50% greater than standard 802.11g.
MAXimum Speed – 125 Mbps performance.
MAXimum Security – Industry leading security protects your network from hackers and unauthorized access from the Internet and from wireless interlopers.
Complete Suite of Security Measures
Wi-Fi Protected Access 2 (WPA2)/802.11i and WPA.
802.1x Authentication.
64/128-bit WEP encryption.
Stateful Packet Inspection (SPI) firewall to prevent network intrusions.
Support for VPN pass through (PPTP, IPSec and L2TP).
MAC address authentication and SSID disable.
MAXimum Simplicity
In one seamless operation the SureStart installation wizard helps you easily install the MAXg PC Card, PCI or USB Adapter and your USRobotics MAXg Router, validates your wireless connection and makes your security set up nearly effortless.
Flexibility
USB Adapter works with laptop & desk PCs, delivering high performance with a USB 2.0 interface.
Also, USB Adapter Swivel/Directional antenna provides better coverage
Router has detachable antenna with reverse SMA connector for attaching higher gain optional antennas.
Excellent Compatibility
Complete compatibility with standard 802.11b, 802.11g and accelerated wireless technologies.
