Security
| Authentication method |
PAP, CHAP, MSCHAP |
| VPN support |
IPSec, PPTP, L2TP |
| Firewall security |
Y |
Networking
| Cabling technology |
Ethernet |
| Frequency band |
2.4 GHz |
Technical details
| DSL specification |
ADSL2, ADSL2+ |
| Antenna type |
3 x SMA |
| Antenna gain level (max) |
2 dBi |
| Compliance industry standards |
IEEE 802.11b, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n, IEEE 802.11e |
| Channels quantity |
13 channels |
Protocols
| Supported network protocols |
Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
Advanced ADSL connectivity & powerful wireless networking in one simple solution

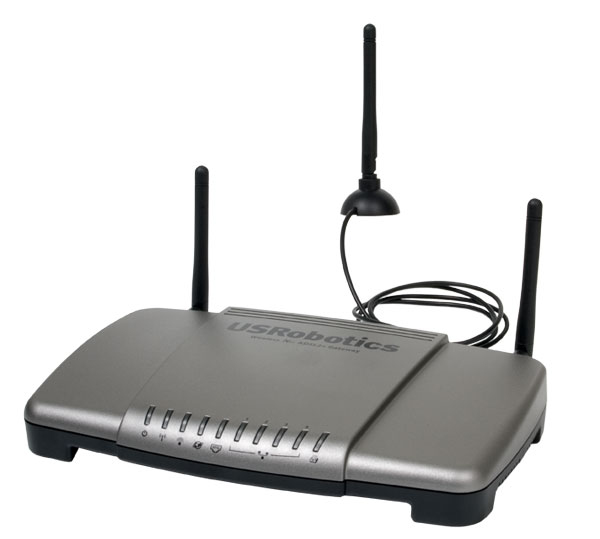

Maximize the performance and flexibility of your ADSL broadband connection with the USRobotics Wireless Ndx ADSL2+ Gateway. This powerful multi-function device integrates the latest ADSL and Ndx wireless technologies for a complete home or small business broadband network. Featuring SecureEZSetup™ for simple and fast installation and security configuration, and exclusive Ndx wireless technology, the gateway delivers wireless speeds up to 270 Mbps* and up to 5 times greater range than standard 802.11g. It is designed for total home/small business coverage and optimal performance. A full complement of security capabilities and an integrated USB print server provide for confident, flexible, and high-performance wireless networking, and support for ADSL2+ assures you optimal ADSL speeds up to 24 Mbps.
Five Products in One
- Wireless Access Point - 802.11g/802.11b compatible with Ndx acceleration technology
- 4-Port Ethernet Switch - Connect up to 4 Ethernet devices right out of the box
- Broadband Router - Support up to 253 users (with additional Ethernet hubs/switches)
- Print Server - Share a USB printer over the network‡
- Stateful Packet Inspection (SPI) Firewall – Protect your network from hackers
Ndx Technology
- Incredible Range – 500% greater than standard 802.11g
- Fantastic Speed – Up to 270 Mbps performance
- Strong Security – Industry leading network and wireless security
- Astounding Simplicity – Seamlessly install gateway, if appropriate an - Ndx wireless adapter, and set up security
Excellent Security
- Full suite of wireless security features including Wi-Fi Protected Access 2 (WPA2), WPA, 64/128-Bit WEP encryption, and 802.1x Authentication
- For Businesses, support for IPSec Termination andVPN pass-through (IPSec, PPTP & L2TP)
- For Home, Parental Control to limit Internet access
Advanced ADSL Technology
- Support for the latest ADSL standards including ADSL2 and ADSL2+; for advanced speeds up to 24 Mbps
- ATM QoS support for high quality Video over DSL (Bind ATM traffic to any Ethernet port)
Broad Compatibility
Works with 802.11g/b and accelerated wireless technology
Easy to Install and Use
Simple installation with USRobotics’ EasyConfigurator utility
