Data transmission
| MAC address table |
8000 entries |
| Store-and-forward |
Y |
Networking
| Port mirroring |
Y |
| Broadcast storm control |
Y |
| IGMP snooping |
Y |
| Link aggregation |
Y |
| 10G support |
N |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) power per port |
30 W |
| Power over Ethernet (PoE) |
Y |
Ports & interfaces
| Installed SFP modules quantity |
4 |
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| DC-in jack |
Y |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
Design
| Ventilation fan(s) |
2 |
| Rack mounting |
Y |

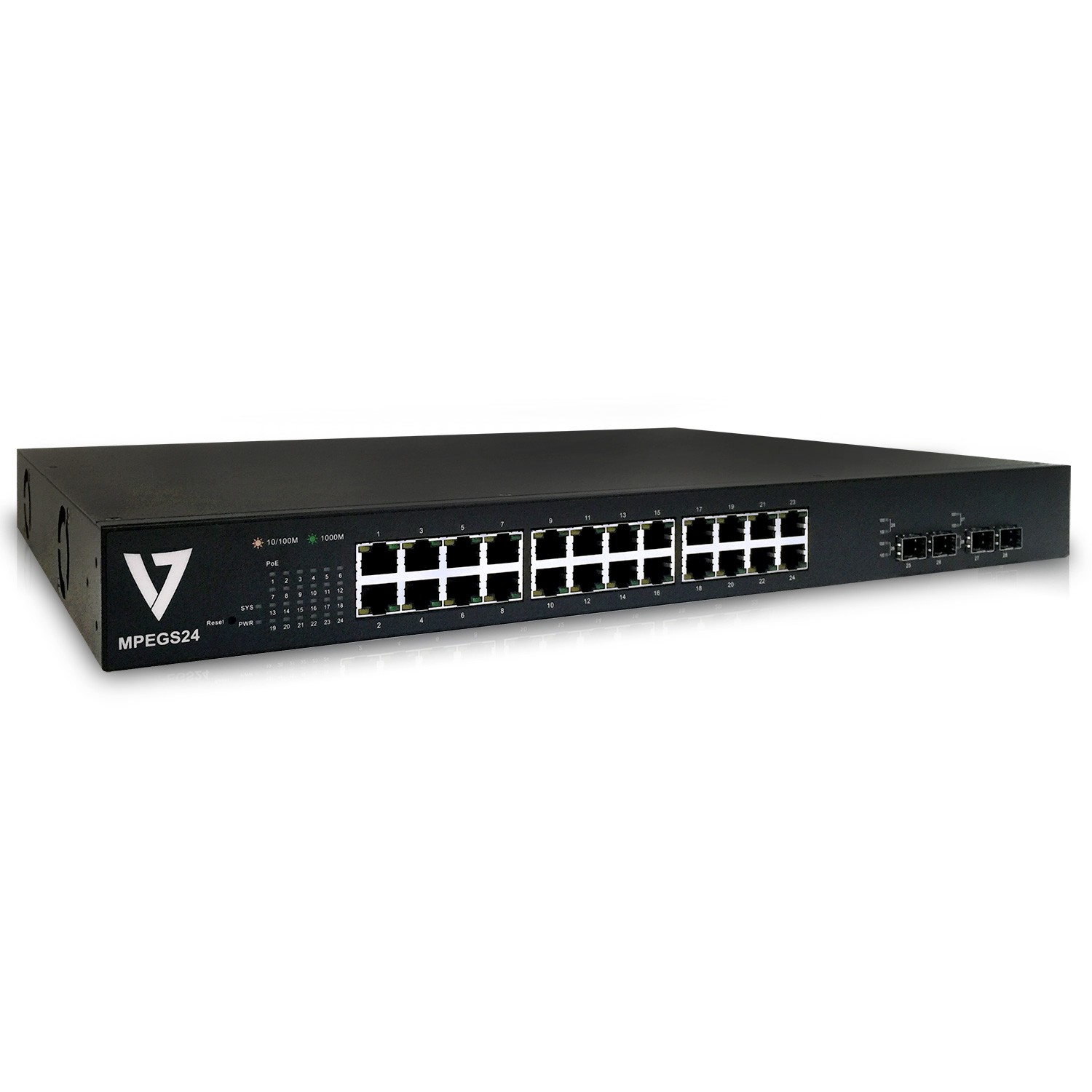

Managed, 24x RJ-45, 4x SFP, Gigabit Ethernet, PoE
The 24 Port Gigabit +4SFP Port POE Web Smart Ethernet Switch from V7 is designed to maximize system functionality. It features Power Over Ethernet (POE) ports that automatically detect and supply power with those 802.3at compliant Powered Devices (PDs) such as wireless access points or IP-based network surveillance cameras. Manage and configure the switch through the web interface for an optimized network, and the switch also comes equipped with 4 combo SFP slots, expanding your network flexibility. Additionally the switch is rack mountable and comes with a mounting kit for fast and easy deployment. With all these advanced features, the 24 Port Gigabit Smart PoE Switch is the smart choice for business networking.
- Twenty-four 10/100/1000 Ethernet ports
- Power Over Ethernet
- Configure and monitor from a web browser
- 4 Small Form-Factor Pluggable (SFP) slots for fiber Gigabit Ethernet expansion
- Rack-mountable using the included rack-mounting hardware
