Features
| Storage media |
SSD |
| Total storage capacity |
32 GB |
| Maximum internal memory |
8 GB |
| Chipset |
Intel QM87 |
| IPMI version |
2.0 |
| Hot-swap handle |
Y |
| Module height |
Middle size |
| Processor cache type |
Smart Cache |
| Supported memory types |
DDR3-SDRAM |
| ECC |
Y |
| Number of processors installed |
1 |
| Processor frequency |
2.4 GHz |
| Power supply |
58 W |
| AMC standards |
AMC.1, AMC.3, AMC.2 |
| Processor cache |
6 MB |
| Module width |
Single width |
| Processor cores |
4 |
Ports & interfaces
| USB 3.0 (3.1 Gen 1) Type-C ports quantity |
2 |
| Micro-USB ports quantity |
2 |
Operational conditions
| Operating vibration |
1 G |
| Operating shock |
160 G |
Additionally
| Ethernet LAN connection |
Y |
| System bus data transfer rate |
5 GT/s |
| RS-232 port |
2 |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Mini DisplayPort quantity |
1 |
AMC, Intel Core i7-4700EQ, QM87, 16 GB DDR3, 32/64 GB Flash, IPMI, PCIe Gen3, RJ-45, 2 x USB 3.0 Type C, mini Display Port, 2 x RS-232, ~ 58 W

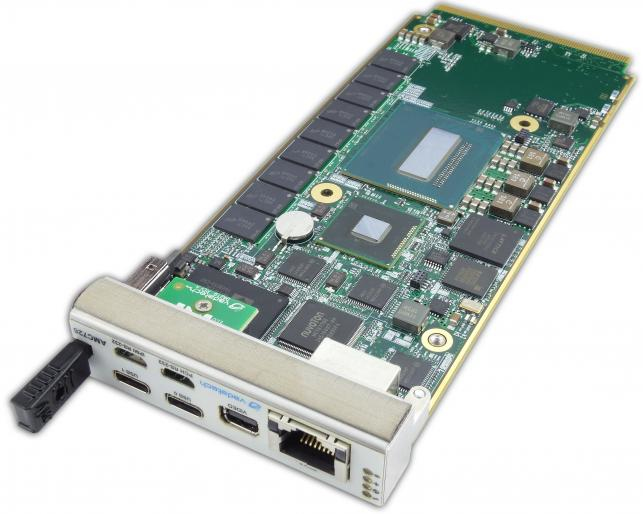

The AMC726 is a Processor AMC (PrAMC) in a single module, mid-size AdvancedMC (AMC) form factor based on the Intel® 4th generation Core i7 Processor (Haswell) with QM87 PCH. The module follows the AMC.1, AMC.2 and the AMC.3 specifications.
The module provides PCIe Gen3 x4 or single x8 on ports 4-11 per AMC.1, GbE on ports 0 and 1 per AMC.2, and SATA on ports 2 and 3 per AMC.3. It also provides GbE to the front panel.
The AMC726 provides 16 GB of DDR3 memory with ECC and 32/64 GB of Flash for the OS. The BIOS allows booting from on board Flash, off-board SATA, PXE boot and USB. There are dual USB for extended storage or peripherals.
Linux OS is standard on the AMC726, consult VadaTech for other options.
- Intel® 4th Gen Core i7-4700EQ
with QM87 chipset
- PCIe Gen3 x4
on ports 4-7 and 8-11 or single PCIe x8 on ports 4-11 (AMC.1)
- GbE to port 0 and 1 (AMC.2)
- SATA to port 2 and 3 (AMC.3)
- Video output via mini DP connector
- GbE to the front panel
- 8/16 GB of DDR3 memory with ECC
- 32/64 GB of Flash memory
- IPMI 2.0 compliant
- Single module, mid-size (option for full-size) per AMC.0
