Features
| Built-in processor |
Y |
| ECC |
Y |
| Power supply |
80 W |
| Trusted Platform Module (TPM) |
Y |
| Processor frequency |
2.3 GHz |
| Processor cores |
4 |
| Processor cache type |
Smart Cache |
| Processor cache |
8 MB |
Ports & interfaces
| VGA (D-Sub) ports quantity |
1 |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
4 |
| DisplayPorts quantity |
1 |
| PCI Express x16 (Gen 3.x) slots |
1 |
Operational conditions
| Operating vibration |
0.5 G |
Additionally
| System bus data transfer rate |
5 GT/s |
Xeon E3-1268L V3, 32 GB ECC, x16 PCIe Gen3, PICMG 3.0 R2.0, 4 x USB 3.0, VGA, 2 x RJ-45 GbE, 2x RJ-45 RS-232, DP, 80W

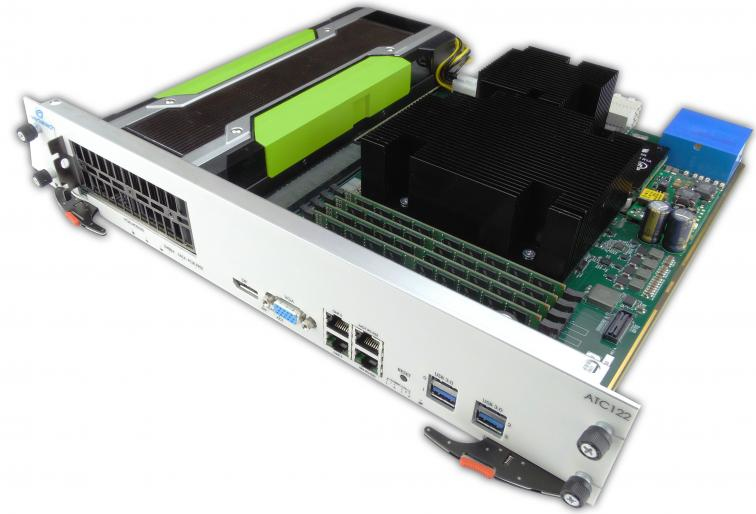

The ATC122 is a Carrier Module with an on board x16 PCIe Gen3 slot to accept any standard PCIe edge type module. The modules has dual 10GbE going to the Fabric channels and dual GbE to the base channels. It comes with 32GB of ECC memory. It has four USB 3.0, DP, VGA, RS-232, and dual GbE that are on the front panel. The ATC122 has an option for the TPM (Trusted Platform Management).
The ATC122 can accommodate a dual width PCIe module with the dual width ATCA front panel option, expanding the board pitch from 1.2” to 2.4”.
- Processing Carrier w/ a PCIe edge Module
- Xeon E3-1268L V3 Processor
- with 32GB ECC
- x16 standard PCIe Gen 3 slot
- 2.3GHz Quad Core
- 3.3GHz Turbo Frequency
- Dual 10GbE to Fabric channels
- Dual GbE to Base channels
- Dual GbE to the front panel
- Display Port (DP) and VGA
- RS-232 to the front panel
- Quad USB 3.0 on the front panel
- On board mSATA socket
- TPM (Optional)
- RoHS compliant
