Camera
Image sensor size |
1/2.8 " |
Closest focusing distance |
0.01 m |
Remote control interface |
IR wireless/RS-232 |
Aperture range (F-F) |
1.8 - 3.4 |
Minimum illumination |
1 lx |
Focus adjustment |
Auto |
Sensor type |
CMOS |
Recommended illumination renge |
1 - 100 lx |
Camera control algorithm |
Tri-synchronous motion |
Optical zoom (super-wide mode) |
12 x |
Optical zoom (normal mode) |
10 x |
Tele end viewing angle (super-wide mode) |
6.6 ° |
Wide end viewing angle (super-wide mode) |
73 ° |
Tele end viewing angle (normal mode) |
7.6 ° |
Wide end viewing angle (normal mode) |
67.3 ° |
Focal length range (f-f) (super-wide mode) |
3.91 - 47 mm |
Focal length range (f-f) (normal mode) |
3.8 - 38 mm |
Closest focusing distance (tele) |
800 m |
Lens modes |
Normal lens mode, Super-wide lens mode |
Networking
Cable standard |
Cat5e |
Ethernet LAN data rates |
10, 100 Mbit/s |
Management features
Management protocols |
Telnet |
Web-based management |
Y |
Packaging content
Handheld remote control |
Y |
Wall mounting kit |
Y |
External interface module included |
Y |
Technical details
Pan range |
-160 - 160 ° |
PTZ control (Pan/Tilt/Zoom) |
Y |
Signal-to-Noise Ratio (SNR) |
50 dB |
Wall mountable |
Y |
Tilt speed range |
0.35 - 120 °/sec |
Pan speed range |
0.35 - 120 °/sec |
Tilt angle |
-30 - 90 ° |
Video
Maximum frame rate |
60 fps |
Megapixel |
2.34 MP |
Ports & interfaces
Power over Ethernet (PoE) ports quantity |
2 |
Video resolution rotary switch |
Y |
Weight & dimensions
Camera dimensions (WxDxH) |
179.2 x 171.6 x 176.3 mm |
Interface module dimensions (W x D x H) |
114.3 x 28.6 x 79.38 mm |
Interface module weight |
510 g |
Interface module
Interface module USB 2.0 ports quantity |
1 |
Interface module DC input port |
Y |
Interface module RJ-45 ports quantity |
2 |
Additionally
Ethernet LAN connection |
Y |
Ethernet LAN (RJ-45) ports quantity |
2 |
Exmor 1/2.8", 2.34MP, FHD, CMOS, 12x, 16:9, PTZ, 50 dB, 2.199923 kg, Quick-Connect USB Mini, International

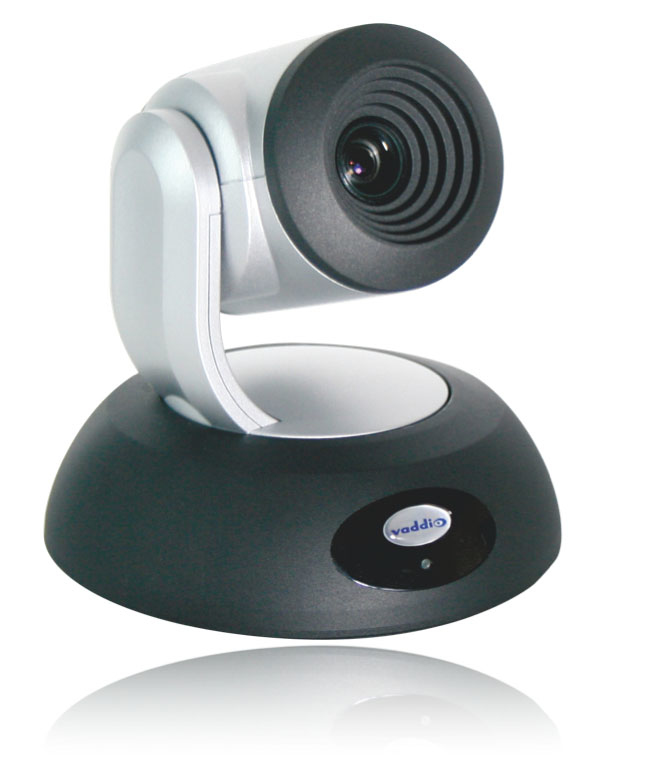

The RoboSHOT 12 HD PTZ Camera is a professional quality PTZ camera with high quality imaging, fine detail and exceptional color reproduction. This camera offers integrators, dealers and end users with an incredible improvement over other conferencing cameras available today.
The RoboSHOT 12 is perfect for small to medium sized conference rooms, training rooms or classrooms that require a wide angle of view. It provides incomparable support for applications including, UC conferencing, videoconferencing, distance learning, lecture capture, telepresence and more!
One of the key features of the RoboSHOT cameras is Tri-Synchronous Motion, a camera control protocol that allows all three (pan, tilt and zoom) axes to move simultaneously. The algorithm calculates the position and velocity of the smooth, direct-drive motor movements between the presets so pan, tilt and zoom arrive at the preset shot simultaneously, which allows for smooth and useable on-air camera movements.
The USB Mini was designed to require simple and effective USB 2.0, 720p/30 streaming and capture capabilities without the need for local analog or digital video outputs. The USB Mini uses UVC (Universal Video Class) drivers, so whatever resolution the UC application needs, the USB Mini will auto negotiate.
The USB Mini powers the camera, returns HSDS (differential) video with connectivity distances up to 150' using the Vaddio standard two Cat. 5 wiring platform. The USB Mini also offers an easy mounting either on-wall or under-table with an integrated mounting tab.
