Other features
| Drive device, transfer rate |
100 MB/s |
| DVI port |
Y |
| MIDI/Joystick port |
N |
| USB ports quantity |
7 |
| Interface |
USB |
Networking
| Ethernet LAN data rates |
10, 100 Mbit/s |
Storage
| Compatible memory cards |
Memory Stick (MS), MMC, SD, SDHC |
Ports & interfaces
| Headphone outputs |
1 |
| Microphone in |
Y |
| USB connector type |
USB Type-A |
Additionally
| Ethernet LAN connection |
Y |
| AC adapter bundled |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |
1 x DVI, 1x USB Type B Mini, 6 x USB 2.0, 2 x Audio, 1 x RJ-45, Fast Ethernet, Card Reader
VALUE USB 2.0 Docking Station, Mini, DVI

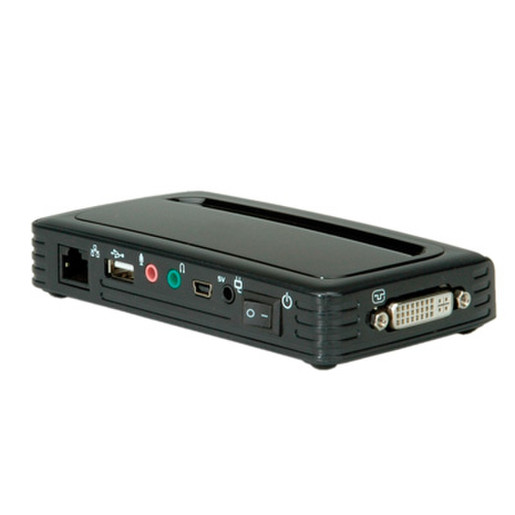

This compact Mini USB 2.0 Docking Station is a perfect solution for your notebook to increase the available I/O ports. With only one USB port required from the notebook, devices as a hub, card reader, monitor, keyboard, mouse, microphone, speaker and a LAN can be accessed and operated freely from the docking station.
- Connection to notebook over USB
- Compliant with USB 2.0 and 1.1
- DVI monitor output supports resolutions of up to 1600 x 900 / 1440 x 1050 (nominal)
- Multi card reader for flash cards like e.g.: SD, SDHC, MicroSD (TF), MMC, MS
- With power on/off switch
- Supports Windows 2000/XP/Vista/7
Connectors:
- 1x DVI port for video output
- 6x USB 2.0 ports
- 2x audio channels (microphone, speaker)
- 1x 10/100 Ethernet LAN port
- 1x USB Type B Mini for notebook input
Contents: Docking Station, power supply, USB cable (1 m), driver CD
