Ports & interfaces
| Number of computers controlled |
16 |
| Keyboard port type |
PS/2 |
| Mouse port type |
PS/2 |
Other features
| Power supply type |
5V DC, 2.5A |
Additionally
| Wireless technologies |
Wired |

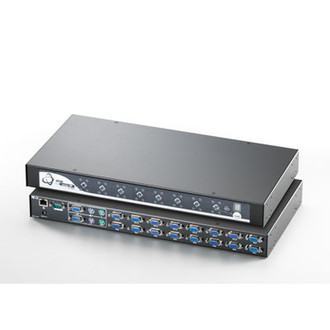

KVM IP Switch, 1 User - 16 PCs
- Automatic KVM Switch
- One local or one remote user
- Up to 16 PCs can be handled with one keyboard, mouse and on monitor
- The switch is cascadable, up to 256 PCs can be handled with one keyboard, mouse and one monitor
- The switching can be done on several ways:
- Automatically in a scan run (Scan Interval adjustable: 5 - 30s)
- Manually by buttons on the front side of the switchbox
- Hot key (keyboard combination)
- Through OSD (On Screen Display)
- Hot-swappable function
- LEDs for Channel Display
- Can be placed in a 19" Rack
- Windows based administration tools
- Security features: Password security and SSL encryption for all signals
- For connecting PCs to the KVM please order special connection cable 11.99.5510 (length: 1.8 m) separately
- Contents: KVM Switch, Power Supply, KVM connection cable, Rack Mounting Kit, Software CD, Manual
.
