Performance
| Motherboard form factor |
Mini ITX |
Other features
| Graphics controller |
VIA UniChrome Pro II 3D/2D AGP |
Back panel I/O ports
| S/PDIF in port |
Y |
| PS/2 ports quantity |
1 |
| Firewire (IEEE 1394) ports |
1 |
| Headphone outputs |
1 |
| S/PDIF out port |
Y |
| Microphone in |
Y |
| VGA (D-Sub) ports quantity |
1 |
Internal I/O
| USB 2.0 connectors |
2 |
| S/PDIF out connector |
Y |
| Number of SATA connectors |
2 |
| ATX Power connector (24-pin) |
Y |
| Power fan connector |
Y |
| Number of IEEE1394 connectors |
1 |
| CPU fan connector |
Y |
Memory
| Number of memory slots |
1 |
| Flash memory |
8 MB |
| Maximum internal memory |
1 GB |
Networking
| Networking features |
10/100 Mbps |
Additionally
| Chipset |
VIA CX700M2 |
| Ethernet LAN (RJ-45) ports quantity |
1 |

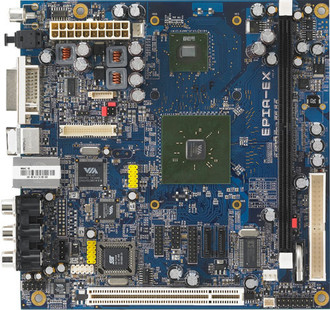

Mini-ITX Board, 1.5GHz, DVI, USB, LVDS, LAN, TV-out, SATA, Coaxial & Optical SPDIF-out
Targeted at the fast-emerging market for x86-based consumer electronics, the VIA EPIA EX-Series Mini-ITX mainboard boasts leading edge multimedia, memory and peripheral support, as well as a complete consumer I/O, all contained within the signature compact platform and very low thermal envelope, with an average operating power consumption of less than 14W.
The VIA EPIA EX mainboard is powered by the highly efficient 1.5GHz or fanless 1.0GHz VIA C7® processor and is the first mainboard to feature the new VIA CX700M2 system media processor, an all-in-one digital media IGP chipset integrating the VIA UniChrome™ Pro II 2D/3D graphics core and an extended array of high end video and audio technologies for the ultimate digital media device. This includes hardware decoding acceleration of MPEG-2/-4 and WMV9 video, an HDTV encoder that utilizes VIA's Advance ProScale® Technology to scale the input resolution for 640x480 up to 1024x768 encode for as high as 1080i, 720p standard HDTV resolution output for HD DVD playback, the Chromotion™ CE engine for crystal clear video, and VIA Vinyl Multi-channel HD audio through the VIA VT1708 HD audio codec for a richer listening experience.
A full complement of consumer I/O includes ports for composite, component and S-Video, S/PDIF audio, and onboard connectors for LVDS and DVI displays, with USB2.0 and IEEE1394 peripheral connectivity, 2 serial ATA connectors for faster data storages access, and 10/100Mbps Fast Ethernet for seamless broadband connectivity, plus a Gigabit Ethernet option. Up to 1GB of the power efficient DDR2 400/533MHz memory is supported, which optimizes system performance for today's digital media applications.
Key Features:
- Integrated VIA UniChrome™ Pro II 3D/2D graphics with MPEG-2/4 and WMV9 decoding acceleration
- Supports HD Audio, with back panel I/O RCA (L+R) to support 2-CH; with S/PDIF output to have 8-CH audio experience
- Supports onboard single-channel LVDS and back panel DVI-I connector
- Supports HDTV resolution TV-out and with S-Video, Composite & Component RCA connectors available in the back panel
- Supports IEEE 1394
- Supports 10/100 Mbps Ethernet, optional for Gigabit Ethernet
- Onboard LPC and SMBus pin headers
- Onboard Video Capture port-CAP0
