Networking
| Wi-Fi |
Y |
| Bluetooth |
N |
| Supported protocols |
Citrix ICA/HDX 13.1 , VMware View 5.01, Microsoft RDP 8.0 with RemoteFX, PCoIP |
| Wake-on-LAN ready |
Y |
Processor
| Processor frequency |
1.87 GHz |
| Processor cores |
2 |
| L2 cache |
1 MB |
Storage
| Card reader integrated |
N |
| Total storage capacity |
4 GB |
| Storage media |
Flash |
Ports & interfaces
| VGA (D-Sub) ports quantity |
1 |
| S/PDIF out port |
N |
| Microphone in |
Y |
| Headphone outputs |
1 |
| DVI-D ports quantity |
1 |
| DC-in jack |
Y |
Memory
| Internal memory |
2 GB |
| Internal memory type |
DDR3-SDRAM |
| Memory clock speed |
1066 MHz |
Additionally
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Chipset |
Intel NM10 Express |
Intel Atom N2800 Dual Core 1.87GHz, NM10, 2GB DDR3 1066MHz, 4GB Flash, Wi-Fi (802.11 b/g/n), Gigabit Ethernet, 4x USB 2.0, DVI-D, VGA, 14W, 0.5kg, Windows Embedded Standard 7
<b>Product Description</b>

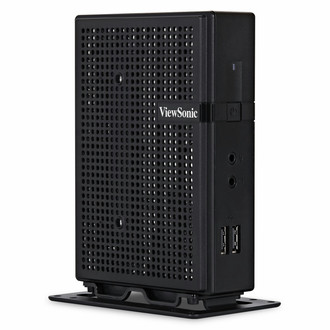

The ViewSonic SC-T45 Thin Client PC uses the powerful Intel Atom N2800 with Windows 7 Embedded Standard OS. The SC-T45 is optimized for all of the major remote networking protocols including Citrix ICA/HDX, VMware PCoIP, and Microsoft RemoteFX—making it a versatile virtualization solution with endless possibilities. The SC-T45 has the horsepower needed to handle a large portion of local processing and graphics rendering, and the flexibility to operate as a stateless device in a VDI-based infrastructure. The SC-T45 is also an energy and space saver, consuming only 14W of power and easily attaching to your VESA-ready monitor with the included VESA bracket. The SC-T45 Thin Client is the perfect solution for companies seeking the benefits of true PC-like performance, along with simplified management and lower total cost of ownership. ViewSonic’s Thin Clients are the smart choice for optimizing your virtual desktop deployment.
<b>Key Features:</b>
- Intel Atom N2800 CPU (1.86GHz processing speed)
- Windows 7 Embedded Standard Operating System
- Flexible design supports all leading remote networking protocols
- Includes 2GB (DDR3) System Memory, and 4GB Flash Storage
- Supports dual output (DVI-D + VGA) for dual monitors at 1080p
- Full connectivity supports dual video out (DVI-D and VGA), 4-USB (V2.0) ports, Mic, Headphone, and RJ45 Ethernet for 10/100/Gigabit
- Ultra-reliable design with no moving parts lasts twice as long
<b>Powerful Computing Combination</b>
With an Intel Atom processor and a Windows 7 Embedded Standard operating system, the SC-T45 is equipped to handle the highest demands of both virtual and local processing, including the most 2D / 3D graphic-intensive applications.
<b>Enterprise Class Virtualization</b>
Whether running Citrix XenDesktop, VMware View, or Microsoft-based VDI, the SC-T45 is the most flexible solution to handle all of your VDI-based virtualization and traditional computing needs.
<b>Dual Display Productivity</b>
A Thin Client PC doesn't have to mean a compromise on performance and productivity. The SC-T45 can support dual 1080p displays with the power to run multiple applications and full streaming video.
<b>Simplified and Secure Management</b>
Microsoft Windows Embedded Device Manager connectivity helps leverage your existing Microsoft System Center Configuration Manager platform. In addition, the free ViewSonic Device Management (VDM) software provides IT administrators with a powerful interface for easier deployment.
<b>Low Total Cost of Ownership</b>
With easier and faster deployment, simplified management, and increased reliability and security, the benefits and efficiency of ViewSonic’s SC-T45 lead to a lower cost of ownership.
<b>Save Cash and Save the Planet</b>
With its ultra low 14W typical power consumption the ENERGY STAR certified ultra compact SC-T45 Thin Client is not only environmentally friendly but also friendly on your electricity bill. The savings of this Thin Client PC with an LED display can add up to thousands of dollars for large install bases, compared to traditional PCs and monitors. The savings can be as dramatic as $120,000 in five years.
<b>TAA Compliance</b>
ViewSonic opens the doors to more opportunities with our broad line of products that are compliant with the Trade Agreement Act (TAA) and are ideal for use in government, educational, and corporate environments. We’ve leveraged our 25-year display heritage and expertise to develop TAA-compliant products that support GSA Schedule needs within the Federal Government.
<b>3-year Limited Warranty</b>
One of the aspects that make ViewSonic a market leader is its dedication to quality. ViewSonic is committed to using the highest grade components. We also back our SC-T45 Thin Client with a 3-year limited warranty for your peace of mind.
<b>Key Applications</b>
- Education and SMB looking for lower TCO computing solutions
- Enterprise Thin / Zero Client Computing (Citrix, VMware, MS)
<b>VESA-mountable design</b>
The SC-T45 features a unique desktop stand that can either be used in a free-standing configuration on the desk, or VESA-mountedto a monitor, depending on your specific needs.
