Display
| Display diagonal |
22 " |
| Response time |
5 ms |
| Contrast ratio (typical) |
3000:1 |
| Display resolution |
1920 x 1080 pixels |
| Viewing angle, horizontal |
170 ° |
| Viewing angle, vertical |
160 ° |
| Display viewable area HxV |
482.6 x 271.8 mm |
| Display brightness |
250 cd/m² |
| Full HD |
Y |
| LED backlight |
Y |
| Display type |
LED |
Ergonomics
| Placement supported |
Horizontal |
| Cable lock slot |
Y |
| VESA mounting interfaces |
100 x 100 mm |
| Tilt adjustment |
Y |
| Wall mountable |
Y |
| Tilt angle |
15 - 70 ° |
Performance
| Number of speakers |
1 |
| Built-in microphone |
Y |
| Number of simultaneous touchpoints |
2 |
| Connection to PC |
Y |
| Plug and Play |
Y |
| RMS rated power |
2 W |
| Mac operating systems supported |
Y |
| Built-in camera |
Y |
| Windows operating systems supported |
Y |
| Touch screen |
Y |
Power
| Power consumption (typical) |
36 W |
| AC input frequency |
50/60 Hz |
| Power supply type |
AC |
Operational conditions
| Operating relative humidity (H-H) |
20 - 90% |
Thin Client
| Internal memory |
1024 MB |
| Internal memory type |
DDR2 |
Weight & dimensions
| Depth |
353 mm |
| Weight |
4800 g |
| Width |
512.8 mm |
| Height |
56.6 mm |
Ports & interfaces
| USB 2.0 ports quantity |
2 |
| Headphone outputs |
1 |
Certificates
| Certification |
CE, CB, C-Tick, UL/CUL, FCC-B, FCC-C, IC RSS-210, SRRC, Gost-R, FAC, WEEE, RoHS, REACH, SVHC, ErP |
Other features
| Number of products included |
1 pc(s) |
Packaging data
| Package depth |
123 mm |
| Package weight |
5800 g |
| Package width |
598 mm |
| Package height |
428 mm |
Additionally
| Colour of product |
Black |
| Display diagonal |
55.88 cm |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Operating temperature range (T-T) |
0 - 35 °C |
SD-A225, 55.88 cm (22 ") , TI OMAP4470 Dual Core 1.5GHz, Android™ 4.1 w/ Citrix XenMobile, 1GB (DDR2), 8GB (eMMC4.4), 1920x1080, 1000:1, 250 cd/m2, 5ms, Wi-Fi, Bluetooth V2.1, 36W, 4.8 kg, Black

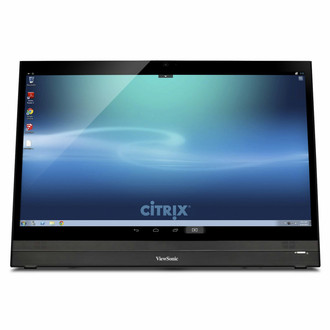

The ViewSonic SD-A225 is a 22” (21.5” viewable) multi-touch smart display client with 1920x1080 Full HD resolution, and a TI Dual Core OMAP. With Citrix XenMobile pre-installed, the SD-A225 is a completely locked-down, secured, and manageable device for your business. Now you can easily provision and deploy both your mobile and desktop devices. Versatile connectivity options include Micro HDMI, three USB ports (2 Type A and 1 Micro USB OTG), Micro SD card reader, RJ45, headphone jack, and 1.3MP webcam with integrated microphone for video conferencing. Wireless and Bluetooth network connections provide instant access to transfer data, documents, and multimedia files. Integrated speakers with SRS 3D complete the package for multimedia enjoyment. The SD-A225 provides the security and control needed on the desktop to leverage the investments being made in mobile and cloud-based tools.
- 22” (21.5” viewable) all-in-one smart display client
- Full HD 1920x1080 resolution with Dual Point Optical Touch technology
- Features TI Dual Core OMAP Processor
- Android 4.1 with Citrix XenMobile
- USB HID Compliant Dual Point Optical Touch for intuitive interaction
- Integrated 1.3MP webcam for crystal clear video conferencing
- Includes Bluetooth, Wi-Fi 802.11b/g/n, and RJ45 Gigabit Ethernet
- Integrated speakers with SRS 3D
