Display
| Separate H/V sync |
Y |
| Display diagonal |
21.5 " |
| Viewable size diagonal |
550 mm |
| Digital vertical frequency |
50 - 76 Hz |
| Digital horizontal frequency |
24 - 83 kHz |
| Contrast ratio (dynamic) |
20000000:1 |
| Response time |
5 ms |
| Contrast ratio (typical) |
1000:1 |
| Display resolution |
1920 x 1080 pixels |
| Viewing angle, horizontal |
170 ° |
| Viewing angle, vertical |
160 ° |
| Display viewable area HxV |
478 x 269 mm |
| Display brightness |
200 cd/m² |
| Full HD |
Y |
| Backlight type |
W-LED |
| Supported graphics resolutions |
1920 x 1080 (HD 1080) |
| LED backlight |
Y |
| Display type |
LED |
Power
| Power consumption (PowerSave) |
21 W |
| Power consumption (typical) |
26 W |
| AC input frequency |
50/60 Hz |
| Energy Star certified |
Y |
Ports & interfaces
| Cables included |
AC, Audio (3.5mm), DVI, USB, VGA |
| DVI-D ports quantity |
1 |
| Audio input |
1 |
| USB 2.0 ports quantity |
3 |
| Headphone outputs |
1 |
| VGA (D-Sub) ports quantity |
1 |
Weight & dimensions
| Dimensions (W x D x H) with stand |
511 x 240 x 635 mm |
| Weight with stand |
4920 g |
| Depth |
310 mm |
| Weight |
3960 g |
| Width |
511 mm |
| Height |
66 mm |
Performance
| Number of speakers |
2 |
| RMS rated power |
4 W |
| HDCP |
Y |
| Built-in speaker(s) |
Y |
| Windows operating systems supported |
Windows 7 Home Basic, Windows 8 |
Operational conditions
| Operating relative humidity (H-H) |
20 - 90% |
Ergonomics
| VESA mounting interfaces |
100 x 100 mm |
| Wall mountable |
Y |
Certificates
| Certification |
CE,CB, BSMI, PSB, SASO, C-tick, e-standby, KC, UL/cUL, FCC-B (including ICES003), UL CoC, Mexico Energy, GOST-R/Hygienic, UkrSEPRO, TCO 5.2, Erp, CCC, China Energy, EPEAT Silver, WEEE, RoHS, SVHC |
Other features
| On Screen Display (OSD) |
Y |
| Package dimensions (WxDxH) |
570 x 214 x 427 mm |
Additionally
| Colour of product |
Black |
| Operating temperature range (T-T) |
0 - 40 °C |
54.61 cm (21.5 ") , 1920 x 1080, 200 cd/m2, 1000:1, 5 ms, 2 x 2 W

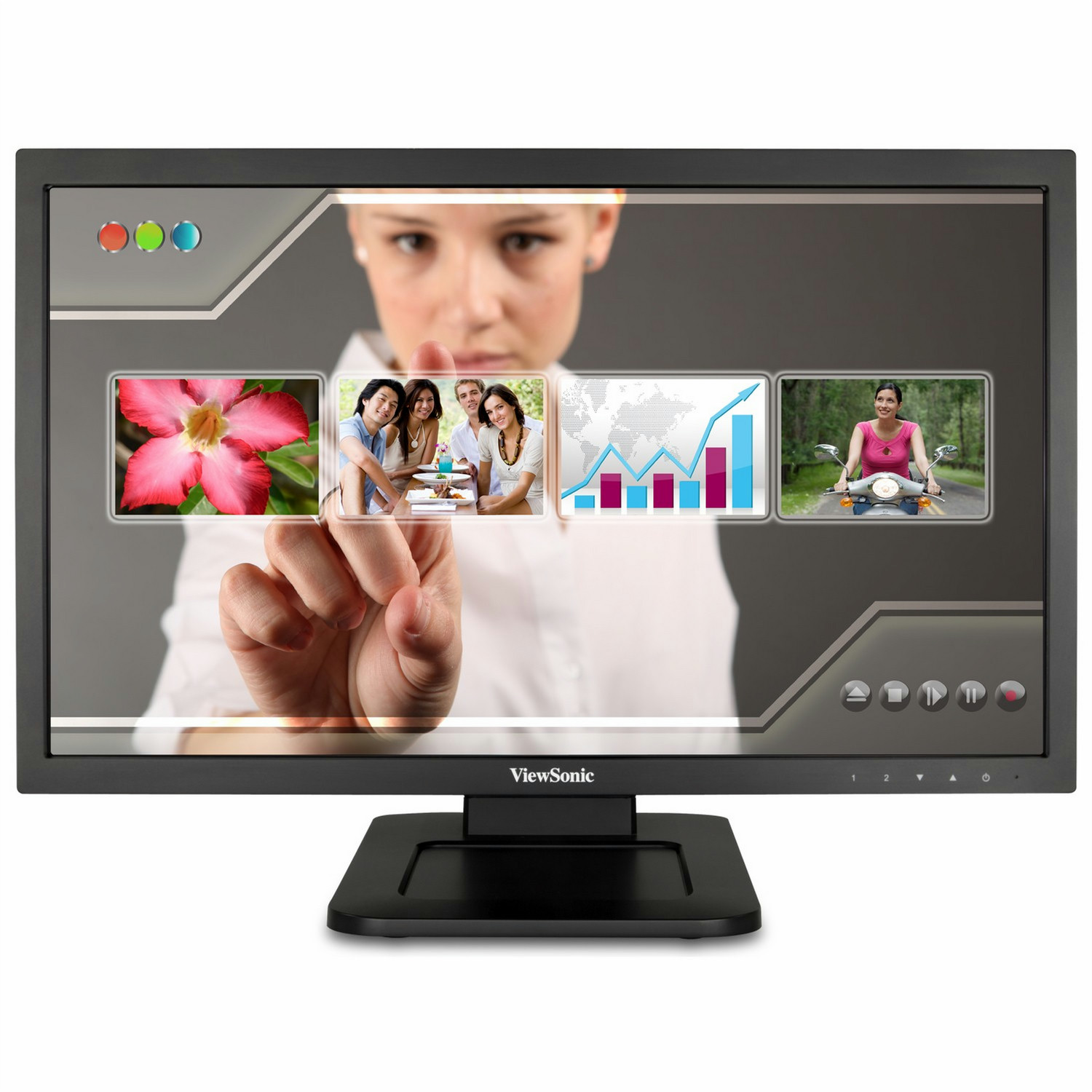

The 22" (21.5" viewable) ViewSonic TD2220 is a multi-touch Full HD LED backlit monitor with 1920x1080 resolution, integrated speakers, DVI & VGA inputs and VESA mountable design. It has 20,000,000:1 MEGA Dynamic Contrast Ratio for sharp crisp images, SRS Premium Sound for crystal clear sound and Eco-mode for up to 40%* energy savings come standard in the new 22" (21.5" viewable) offering. Perfect for both commercial and consumer applications, the TD2220 supports the USB HID Touch driver and is fully compatible with Windows 8. The TD2220 is a one-stop solution for your multi-touch monitor needs. You will also get the most out of your investment with ViewSonic's strongest pixel performance guarantee, 3-year limited warranty, as well as ENERGY STAR and EPEAT Silver certifications.
- 22"(21.5"; viewable) touch enabled LED monitor with Dual Optical Touch and Windows 8 compatible to provide excellent touch control experience.
- 1920x1080 Full HD resolution to support imaging intensive commercial applications, video and image editing and entertainment.
- 8H scratch resistant surface hardness helps ensure consistent high quality touch experience.
- Stereo speakers with SRS Premium Sound for crystal clear sound performance.
- Digital (DVI) and Analog (VGA) inputs for multiple media sources and USB hub for excellent connectivity.
- ENERGY STAR and EPEAT Silver certified for up to 50%* energy saving with LED backlight.
- VESA mountable design, holes ready for full ergonomics and comfort.
- Backed by ViewSonic's 3-year limited warranty and highest grade panel with one of the best pixel performance policy in the industry.
- Kensington lock slot for optional security.
