Other features
| Compliance industry standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
| Networking features |
Gigabit Ethernet |
| Maximum number of SMP processors |
1 |
| Platform |
PC |
| Power supply type |
AC/DC |
Ports & interfaces
| HDMI ports quantity |
1 |
| DVI port |
Y |
| Headphone outputs |
1 |
| Microphone in |
Y |
| DC-in jack |
Y |
Networking
| Cabling technology |
10/100/1000Base-T(X) |
| Wake-on-LAN ready |
Y |
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
| Wi-Fi |
Y |
Processor
| Number of processors installed |
1 |
| Processor cache |
1 MB |
| Processor lithography |
45 nm |
| Thermal Design Power (TDP) |
10 W |
| Processor codename |
Penryn |
| Conflict Free processor |
N |
| Processor cache type |
L2 |
| Tjunction |
100 °C |
| FSB Parity |
Y |
| Processor front side bus |
800 MHz |
| Number of Processing Die Transistors |
410 M |
| Processor operating modes |
64-bit |
| Stepping |
R0 |
| Processor cores |
2 |
| Processor frequency |
1.2 GHz |
| ECC supported by processor |
N |
| Bus type |
FSB |
Processor special features
| Intel Rapid Storage Technology |
N |
| Intel Fast Memory Access |
N |
| Intel Flex Memory Access |
N |
| Execute Disable Bit |
N |
| Thermal Monitoring Technologies |
Y |
| Intel Trusted Execution Technology |
N |
| Intel Virtualization Technology (VT-x) |
Y |
| Processor package size |
22 mm |
| Processor ARK ID |
42779 |
| Processor code |
SLGSB |
| Intel® Quick Sync Video Technology |
N |
| Intel® Insider™ |
N |
| Intel 64 |
Y |
| Intel Clear Video Technology |
N |
| Intel Dual Display Capable Technology |
N |
| Embedded options available |
N |
| Intel Virtualization Technology for Directed I/O (VT-d) |
N |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel Hyper-Threading Technology |
N |
| Intel® Turbo Boost Technology |
N |
| Intel Enhanced Halt State |
N |
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel Clear Video Technology for MID |
N |
| Intel vPro Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
N |
| Intel FDI Technology |
N |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel Demand Based Switching |
N |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
Memory
| Memory clock speed |
800 MHz |
| Internal memory type |
DDR2-SDRAM |
| Internal memory |
2 GB |
Storage
| Hard drive speed |
5400 RPM |
| Compatible memory cards |
Memory Stick (MS), MMC, SD |
| Total storage capacity |
250 GB |
| Number of hard drives installed |
1 |
| Card reader integrated |
Y |
| Hard drive interface |
Serial ATA |
Operational conditions
| Operating altitude |
0 - 3048 m |
Additionally
| InTru™ 3D Technology |
N |
| Chipset |
Intel GS40 Express |
| Processing die size |
107 mm² |
| Ethernet LAN connection |
Y |
| Intel AES New Instructions |
N |
| Ethernet LAN (RJ-45) ports quantity |
1 |
VOT125, Intel Celeron SU2300 (1M Cache, 1.20 GHz, 800 MHz FSB), 2GB DDR2, 250GB HDD, Gigabit Ethernet, 802.11b/g/n, 4 x USB 2.0, HDMI, DVI, 65W, 550g, Black, Windows 7 Home Premium

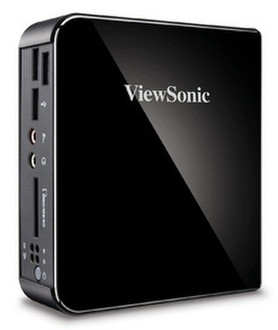

The ViewSonic® VOT125 PC Mini is the perfect compact solution for business and home users who
demand high performance computing. Powered by Ultra Low Voltage, Intel® ULV processors in a space saving profile, VOT125 offers the ultimate in smarter, greener computing. It features a green centric design using 90% less plastic and consuming up to 90% less energy compared to a traditional tower PC. Whether it is placed on the desktop or VESA® mounted to the back of any display, the VOT125 creates a truly efficient workspace. Standard features include 2GB internal memory, 250GB hard drive, four USB 2.0 ports, DVI/HDMI outputs, and Ethernet/ wireless internet connections. Choose your preferred energy saving Intel ULV processor, to customize your own VOT125 and experience modern computing with a much smaller footprint, on your desk and on the planet.
