TV tuner
| Auto channel search |
Y |
| Analog signal format system |
NTSC |
| Tuner type |
Analog & Digital |
| Digital signal format system |
ATSC |
Display
| Display diagonal |
15.6 " |
| Response time |
11 ms |
| Screen shape |
Flat screen |
| Contrast ratio (typical) |
650:1 |
| HD type |
Not supported |
| Viewing angle, horizontal |
90 ° |
| Viewing angle, vertical |
65 ° |
| Display brightness |
220 cd/m² |
| Display resolution |
1366 x 768 pixels |
| Aspect ratio |
16:9 |
Ports & interfaces
| PC in (D-Sub) |
N |
| PC Audio in |
Y |
| DVI port |
N |
| Common interface (CI) |
N |
| Common interface Plus (CI+) |
N |
| Headphone outputs |
1 |
| Audio (L,R) in |
2 |
| USB 2.0 ports quantity |
1 |
| Component video (YPbPr/YCbCr) in |
2 |
| Digital audio optical out |
1 |
| VGA (D-Sub) ports quantity |
1 |
| RF ports quantity |
1 |
| HDMI ports quantity |
1 |
Weight & dimensions
| Weight with stand |
1300 g |
| Depth |
145 mm |
| Width (with stand) |
373.3 mm |
| Weight |
1100 g |
| Width |
373.3 mm |
| Height |
227.5 mm |
| Depth (with stand) |
139.3 mm |
| Height (with stand) |
271.3 mm |
Power
| Power consumption (typical) |
20 W |
Ergonomics
| VESA mounting |
Y |
| VESA mounting interfaces |
75 x 75 mm |
| Tilt angle |
-10 - 10 ° |
Operational conditions
| Operating relative humidity (H-H) |
20 - 80% |
Audio
| Number of speakers |
2 |
| RMS rated power |
3 W |
| Built-in speaker(s) |
Y |
Packaging content
| Handheld remote control |
Y |
| Batteries included |
Y |
| Quick start guide |
Y |
Performance
| Image formats supported |
JPG |
| Audio formats supported |
MP3 |
| Parental control |
Y |
Certificates
| RoHS compliance |
Y |
| Certification |
FCC, UL, NOM |
| Energy Star certified |
Y |
Management features
| On Screen Display (OSD) |
Y |
Additionally
| Colour of product |
Grey |
| Ethernet LAN connection |
N |
| On/Off switch |
Y |
| Operating temperature range (T-T) |
0 - 40 °C |
| Energy efficiency compliance |
Unspecified |
39.624 cm (15.6 ") color TFT active matrix, wide LCD with WLED backlight, 1366 x 768, 11ms, 220 cd/m2, 16:9, VGA, HDMI, ATSC/NTSC/QAM HDTV tuner

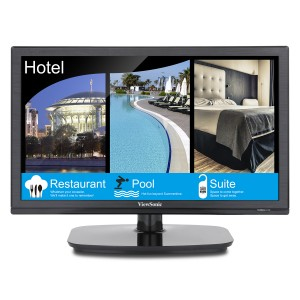

The ViewSonic VT1602-L is a 16" (15.6" viewable) professional monitor with "edge white" LED technology, and a built-in ATSC/NTSC/QAM HDTV tuner ideal for hotel, retail, restaurant, and lounge TV systems. Featuring 1366 x 768 resolution, 650:1 contrast ratio, and 220-nit brightness, the VT1602-L delivers high-quality image performance. Integrated HDMI, D-Sub and YPbPr video inputs allow for versatile connectivity for high-definition devices. USB playback provides easy small-screen desktop signage by playing JPEG media files and MP3 audio. Users can also set up specific product calibration with internal programming features. Dual integrated 3W speakers and SPDIF functionality also make this LED TV a complete multimedia entertainment package.
- Built-in ATSC/NTSC/QAM HDTV tuner to receive high-definition TV programming
- Mercury-free LED backlight and 1366 x 768 resolution
- HDMI–HDCP digital video input with high definition content protection (HDCP) for digital rights management.
- Programmable hospitality set-up with USB cloning feature
- HDMI, D-Sub, YPbPr versatile inputs
Built-in HDTV Tuner
The ViewSonic VT1602-L commercial TV has a built-in ATSC/NTSC/QAM HDTV tuner that receives both analog and Full HD high-resolution TV signals. The built-in tuner offers viewers more content choices by delivering a wider range of HDTV channels, including channels for business, sports, education, movies, etc.
