Battery
| Battery capacity |
18 Ah |
| Number of battery cells |
2 |
| Battery recharge time |
8 h |
| Battery voltage |
24 V |
| Battery replacement alarms |
Audible, LED |
Performance
| Noise level |
40 dB |
| Waveform |
Sine |
| Auto-restart |
Y |
| Audible alarm(s) |
Y |
| UPS topology |
Line-Interactive |
| EMI/RFI noise filtering |
Y |
| Power protection features |
Overcharge, Overdischarge, Short circuit |
| Surge protection features |
Modem, Telephone |
| Off-mode charging |
Y |
| Automatic Voltage Regulation (AVR) |
Y |
Power
| Input operation voltage (max) |
290 V |
| Input operation voltage (min) |
81 V |
| Power supply input frequency |
50/60 Hz |
| Output power capacity |
2200 VA |
| Output operation voltage (min) |
110 V |
| Output operation voltage (max) |
240 V |
| Output voltage regulation |
+/- 10% |
| Output frequency regulation |
+/- 1 Hz |
| Output power |
1200 W |
Ports & interfaces
| Modem (RJ-11) ports |
2 |
| AC outlets quantity |
6 |

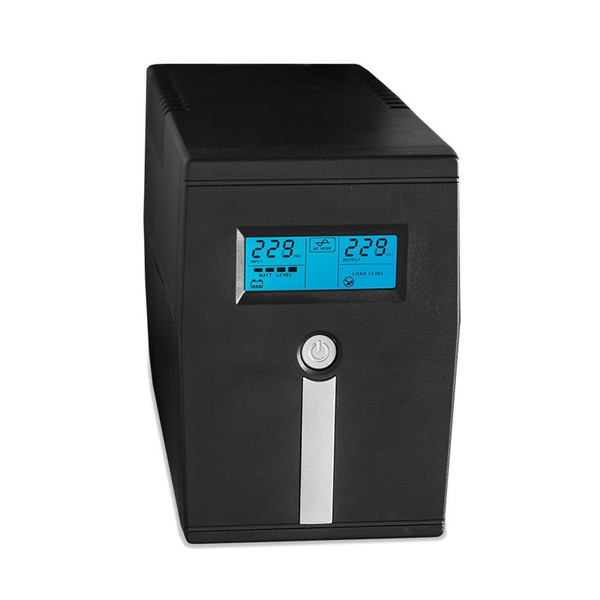

2200VA, 1200W, 24V (2x9Ah), USB, LCD
- Line-interactive technology (VI)
- Automatic Voltage Regulator (AVR, "Boost & Buck")
- Transfer to battery at under and over voltage
- Big LCD-display
- Self-diagnostic function
- Battery cold start
- Genset-compatible
- Auto-charging in Off-Mode
- Auto-restart function
- Automatic computer shutdown
- Audible and visible alarm
- Surge protection
- RJ45/11 protection (EMI/RFI filtering)
- USB interface including software
- 2 years warranty (electronics)
Cost-effective solution
The Budget Pro LCD series, featured with smart microprocessor control design, AVR boost and buck, smart USB interface and cold start function, is a cost-effective solution to your mission-critical PC and valuable peripherals.
Automatic Voltage Regulator
The AVR Boost & Buck automatically corrects either under-voltage or over-voltage condition without unnecessary battery drain and extend the life of the battery.
LCD Display
With comprehensive graphic display, it provides easy read-out statuts of the UPS from the screen, such as input, voltage, load level, battery level...
