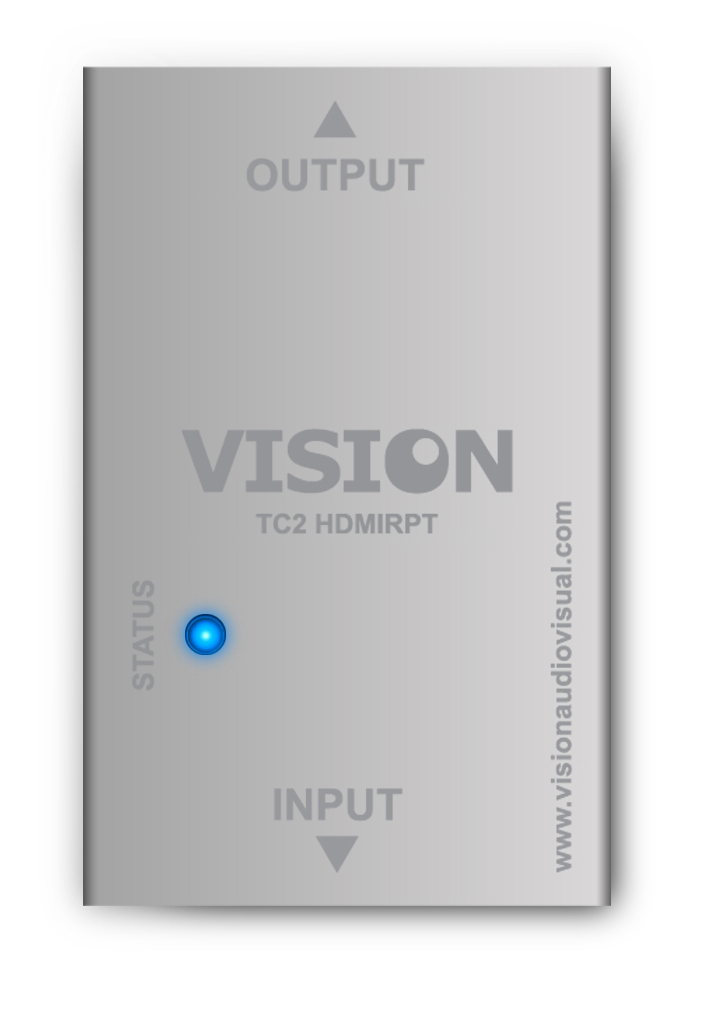

Vision TC2 HDMIRPT

HDMI Repeater The Techconnect HDMI repeater joins two HDMI cables to make a single long cable. The small chassis can hide in dado rail, and it suits any application where HDMI cables are used including corporate meeting rooms, home cinemas, classrooms, and churches.

<b>30m Length</b>
Two cables can be joined together to create one 30m cable capable of 1080P. At lower resolution longer lengths of up to 50m are possible but this depends on cable quality. Note: daisy-chaining more than one repeater is not recommended.

<b>Mis-matched cables</b>
If the two cables are varying lengths the longer one should be used between the source device and the repeater.

<b>TC2 HDMIRPT input and outputFull Resolution</b>
A bandwidth of 1.65Gbps allows the TC2 HDMIRPT to transmit fully supported HDMI v1.4 1080p@60Hz, 48 bit. It supports 3D and is HDCP compliant.

<b>Automatic EQ</b>
Auto-adjustment of feedback, equalization and amplification. The installer does not need to pay attention to cable lengths.

<b>ESD Protection</b>
The HDMI repeater has an electrostatic discharge filter to protect itself and expensive source and display equipment.
