Technical details
| Maximum transfer distance |
50 m |
| Bandwidth |
6.75 Gbit/s |
| Wi-Fi |
N |
| Type |
AV transmitter & receiver |
| Cable types supported |
Cat5e, Cat6 |
Power
| Current |
2 A |
| External power adapter |
Y |
| Operating voltage |
12 V |
Weight & dimensions
| Receiver dimensions (WxDxH) |
82 x 44 x 24 mm |
| Transmitter dimensions (WxDxH) |
71 x 21 x 48 mm |
Ports & interfaces
| RJ-45 input ports |
1 |
| RJ-45 output ports |
1 |
| HDMI in |
1 |
| DC-in jack |
Y |
Additionally
| AC adapter bundled |
Y |
| Ethernet LAN connection |
Y |
| Wireless connections |
N |
6.75Gbps, 1920×1200 / 1080P, HDMI 1.3, 3D, 30Hz, CAT5e, CAT6,

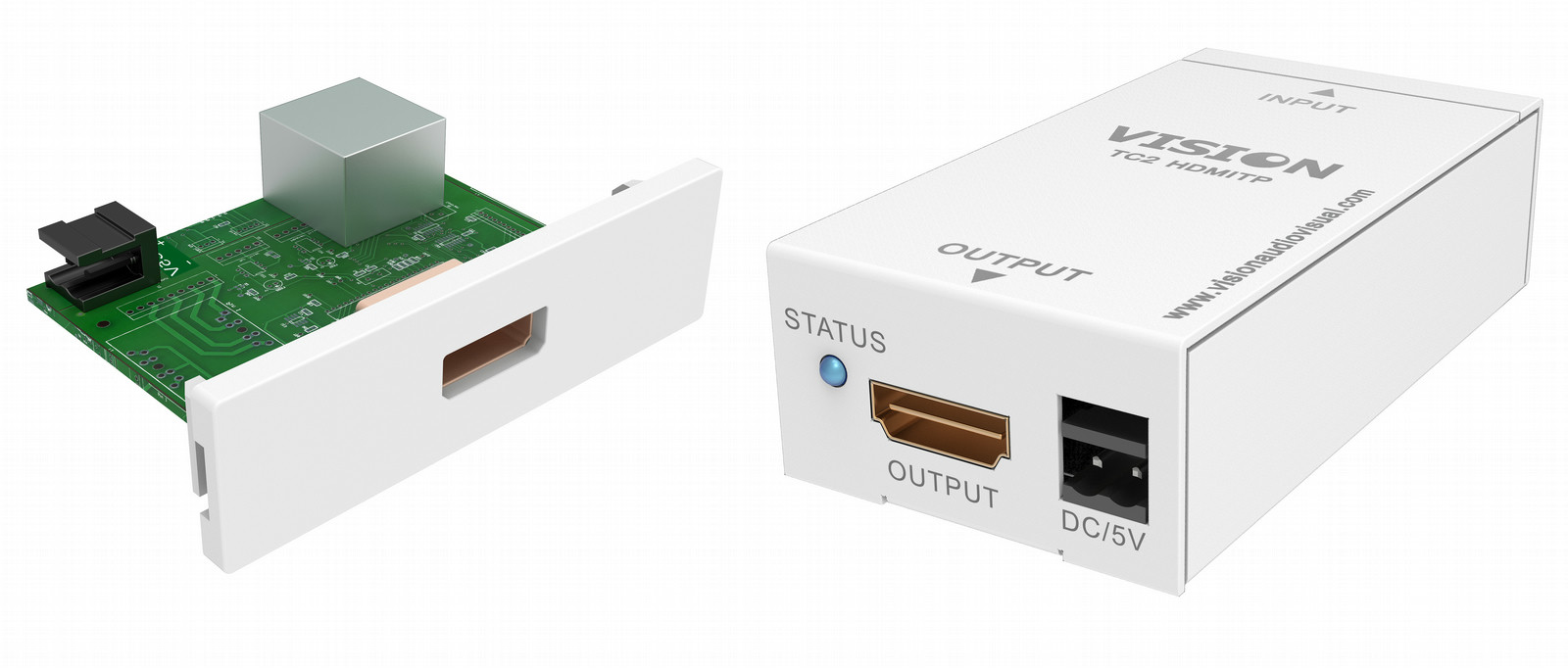

Vision’s “Techconnect Twist” products allow a variety of signals to be transmitted long distances over standard unshielded CAT5e and CAT6 cable. Sold as a transmitter and receiver set, the ‘TC2 HDMITP’ enables use of inexpensive and flexible UTP (unshielded twisted pair) cable to route HDMI signal from a computer to a display device.
<b>Faster Installation</b>
Installers can take advantage in buildings which have been flood-wired with network cable. Where a CAT5 cable is already in place the installation is super-fast.
<b>Techconnect Module</b>
The transmitter presents as an ordinary Techconnect HDMI module from the front, allowing tidy clip-in installation. The circuit on rear of the module is packed with technology.
