Video
| Maximum frame rate |
30 fps |
| Maximum video resolution |
720 x 576 pixels |
| Motion JPEG frame rate |
30 fps |
| MPEG-4 frame rate |
30 fps |
| PAL resolutions |
720 x 576 pixels |
| NTSC resolutions |
720 x 480 pixels |
Ports & interfaces
| I/O terminal ports |
16 |
| RS-485 ports |
1 |
| DC-in jack |
Y |
Networking
| Copper ethernet cabling technology |
100BASE-TX, 1000BASE-T, 10BASE-T |
| Supported network protocols |
10/100/1000 Mbps Gigabit Ethernet, RJ-45 ONVIF support Protocols: IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X |
Technical details
| PTZ control (Pan/Tilt/Zoom) |
Y |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Password protection |
User |
720 x 480 (NTSC) /720 x 576 (PAL), 30/25 fps, 10/100/1000 Mbps, 8x D/I, 8x D/O, 837g, Black

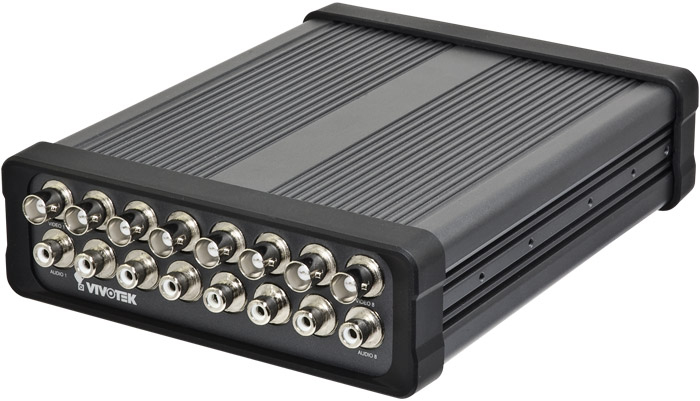

VIVOTEK VS8801, the new milestone in video server security performing 8-CH high resolution with high frame rate in H.264, is able to convert analog video into digital video with the highest quality. The H.264 compression format drastically reduces the file sizes and conserves valuable bandwidth and storage space. The VS8801 supports single stream to be transmitted in H.264, MPEG-4 and MJPEG formats for versatile applications. The stream can also be individually configured with frame rates, resolution, and image quality so as to meet different platforms or bandwidth constraints.
Featured with intelligent video functions, such as motion detection & temper detection, the VS8801 is capable of upgrading an analog camera into an intelligent camera. The tamper detection feature can detect events such as blockage, redirection, defocus, and spray-painting of camera lens, making it an intelligent solution to possible camera obstruction. Furthermore, it also upgrades the security level of the IP surveillance system with the network security protocols, HTTPS and 802.1x. It is also designed with Giga LAN for large transmission need and DC 12V / AC 24V compatible power input design. These features make VS8801 easy to install and integrate with the existing analog system.
Monitoring with VIVOTEK's ST7501 as the video management software for better scalability and easy-to-use operation is another delightful benefit. Most importantly, it is designed for rack mount solution for easy installation. The solution for video server is a pioneering idea in the world. The innovative vision of video server, VS8801, helps you easily upgrade to a full-featured, high-end IP surveillance solution!
