Processor
| Processor frequency |
667 MHz |
| Processor manufacturer |
Samsung |
Power
| Battery recharge time (on) |
4 h |
| Battery type |
3.7V |
| Battery life (max) |
72 h |
Technical details
| Keyboard layout |
Numeric |
| Barcode reader |
Y |
| Phone function |
N |
Memory
| Internal memory type |
DDR |
| Internal memory |
128 MB |
| Compatible memory cards |
MMC, SD |
Additionally
| RFID (Radio Frequency IDentification) reader |
N |
| Internal ROM |
256 MB |
| Battery performance |
2000 mAh |

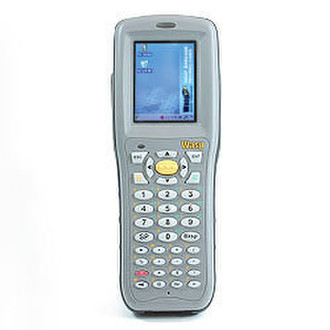

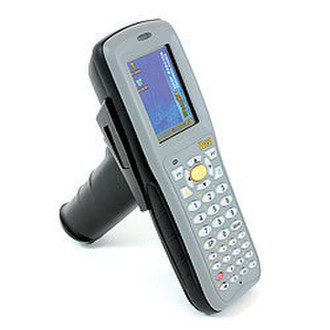

WDT3200 Mobile Computer with Pistol Grip - 802.11b/g, Samsung 6410 667 MHz, 128 MB SDDR, 256 MB, 2000mAh, USB 1.1, SD/MMC, Windows CE 6.0 Pro
The Wasp WDT3200 series mobile computers are designed to streamline your data collection, delivering premium performance in demanding environments. Collect data accurately and efficiently with the WDT3200’s integrated laser barcode scanner. Rapidly scan 1D barcodes up to 30” away, instantly adding data to the mobile computer. Add and update quantities with the 36-key keypad. The backlit, color touch screen delivers crisp, high-contrast viewing, so data can be easily reviewed indoors or outdoors.

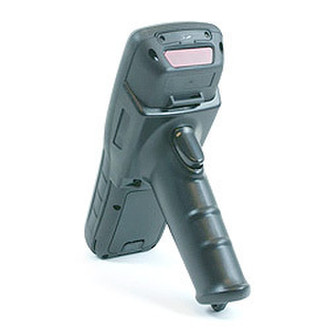

The WDT3200 series offers durable, rugged construction, standing up to multiple 4.5 foot drops to concrete. Built to tolerate tough, high-traffic environments, the WDT3200 features integrated protection against dust and water. Optional pistol grip ensures that the WDT3200 is comfortable for prolonged use in warehouse, retail, manufacturing, transportation and logistics.
The WDT3200 features user-friendly Windows CE 6.0 Pro operating system. Upgrade to the WDT3250 for 802.11 b/g communication across your organization’s wireless network.
Benefits
- Ergonomic design ensures comfortable use
- Vivid, backlit screen increases readability in harsh lighting conditions
- Windows CE 6.0 Pro operating system allows for rapid application development and deployment
- Integrated laser scanner reads 1D barcodes quickly and accurately
WDT3200 Series Features & Technical Specifications
Wireless Connectivity
- 802.11b/g on WDT3250
Memory/Operating System
- CPU: Samsung 6410 Processor @ 667 MHz
- RAM: 128 MB SDDR
- Optional RAM: SD slot supports SD/MMC memory cards up to 16 GB
- Flash ROM: 256 MB
- Operating System: Windows CE 6.0 Pro, supports development via Visual Studio 2003 or 2005
- Keyboard: 36-key keypad with numeric key, alpha key and function key, ESC, ENT, backspace, cursor key, trigger key and other symbology
- Display: 2.8" QVGA backlit color touch screen at rich 240 x 320 pixel resolution
Power Management
- Main battery: One rechargeable Lithium-ion battery pack @3.7V, 2000mAh
- Operating time: Up 12 hours on single charge
- Backup battery: Up to 72 hour battery backup
- Lithium-ion recharge: 4 hours in docking cradle or charging cable
- Power input: AC adapter 5V DC@3A
Barcode Scanner
- Scanner: Laser scan engine
- 104 scans/sec scan rate, +/-12 scans/sec
- 47° ±3° scan angle
- from 1.5” to over 30” read range (up to 36” with 20 mils)
- Barcode reading: UPC-A/E, EAN-8/13, Codabar, Code 39 (3 of 9), Code 39 (3 of 9) Full ASCII, Code 93, Code 32, Code 11, ITF, Delta, MSI/Plessey, Interleaved 2 of 5, Standard 2 of 5, EAN-128, Toshiba
Physical and Environmental
- IP rating: IP54
- Drop test: 1.5 meters (4.5ft) to floor
- Dimensions: 199.5mm (7.8”) (L) x 72.1mm (2.8”) (W) x 39.6mm (1.6”) (H)
- Weight (approx.): 360g with battery pack
- Temperature: Operating: 32°F (0°C) to 122°F (50°C)
- Storage: -4°F (-20°C) to 158°F (70°C)
- Humidity: 5% to 95% relative humidity non-condensing
- Regulatory: CB, CE, FCC, BAMI, VCCI, CCC, TELEC, RoHS Compliant
- SD card slot
- Includes: AC power adapter, USB 1.1 cable for PC connectivity and charging, stylus
- Optional Pistol Grip (included with 633808920296 and 633808920388)
