Graphics
| On-board graphics adapter |
Y |
| On-board graphics adapter ID |
0x102 |
| On-board graphics adapter dynamic frequency (max) |
1100 MHz |
| Number of displays supported (on-board graphics) |
2 |
| On-board graphics adapter family |
Intel HD Graphics |
| Discrete graphics adapter model |
Intel HD Graphics 2000 |
| On-board graphics adapter base frequency |
850 MHz |
Processor
| Processor cache |
6 MB |
| Processor lithography |
32 nm |
| Thermal Design Power (TDP) |
95 W |
| Processor cores |
4 |
| Processor frequency |
2.9 GHz |
| Tcase |
72.6 °C |
| ECC supported by processor |
N |
| Bus type |
DMI |
| Memory bandwidth supported by processor (max) |
21 GB/s |
| Maximum internal memory supported by processor |
32 GB |
| PCI Express slots version |
2.0 |
| Number of processors installed |
1 |
| Processor boost frequency |
3.2 GHz |
| Maximum number of PCI Express lanes |
16 |
| Processor codename |
Sandy Bridge |
| Processor cache type |
Smart Cache |
| Conflict Free processor |
N |
| FSB Parity |
N |
| CPU multiplier (bus/core ratio) |
29 |
| Processor operating modes |
64-bit |
Processor special features
| Intel Fast Memory Access |
Y |
| Intel Flex Memory Access |
Y |
| Execute Disable Bit |
Y |
| Thermal Monitoring Technologies |
Y |
| Intel Trusted Execution Technology |
N |
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel Clear Video Technology for MID |
N |
| Intel vPro Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Intel FDI Technology |
Y |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel Identity Protection Technology version |
1.00 |
| Intel Demand Based Switching |
N |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
Y |
| Supported instruction sets |
AVX |
| Intel Rapid Storage Technology |
N |
| Processor package size |
37.5 mm |
| Processor ARK ID |
53445 |
| Intel® Quick Sync Video Technology |
Y |
| Intel® Insider™ |
Y |
| Intel 64 |
Y |
| Intel Clear Video Technology |
N |
| Intel Dual Display Capable Technology |
Y |
| CPU configuration (max) |
1 |
| Embedded options available |
N |
| Intel Virtualization Technology for Directed I/O (VT-d) |
N |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel Hyper-Threading Technology |
N |
| Intel® Turbo Boost Technology |
Y |
| Intel Enhanced Halt State |
Y |
Software
| Operating system architecture |
64-bit |
Expansion slots
| PCI Express x1 slots |
2 |
| PCI Express x16 slots |
1 |
| PCI slots |
1 |
Other features
| Floppy drive installed |
N |
| Expansion slots |
7 x PCI |
| TV tuner integrated |
N |
| Built-in camera |
N |
| Networking topology |
Gigabit Ethernet |
| External drive bays |
4 x 5.25", 1 x 3.5" |
| Internal drive bays |
6 x 3.5" |
| Drive device, buffer size |
64 MB |
| Graphics adapter family |
Intel |
Design
| Number of 3.5" bays |
7 |
| Chassis type |
Midi Tower |
| Number of 5.25" bays |
4 |
Storage
| Hard drive speed |
Variable RPM |
| Total storage capacity |
1500 GB |
| Card reader integrated |
N |
| Hard drive interface |
Serial ATA III |
| Hard drive capacity |
1500 GB |
Memory
| Memory slots |
4x DIMM |
| Maximum internal memory |
32 GB |
| Internal memory |
4 GB |
| Internal memory type |
DDR3-SDRAM |
| Memory clock speed |
1333 MHz |
| Memory layout (slots x size) |
2 x 2 GB |
Optical drive
| Optical drive type |
DVD Super Multi DL |
| LightScribe |
N |
Ports & interfaces
| Line-in |
Y |
| Line-out |
Y |
| Headphone outputs |
1 |
| S/PDIF out port |
Y |
| Microphone in |
Y |
| eSATA ports quantity |
1 |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
| HDMI ports quantity |
1 |
| DVI port |
Y |
Networking
| Wi-Fi |
N |
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
Additionally
| Ethernet LAN connection |
Y |
| Intel AES New Instructions |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| System bus data transfer rate |
5 GT/s |
| InTru™ 3D Technology |
Y |
| Chipset |
Intel H67 |

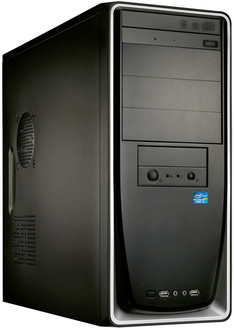

White Label PC4055I. Processor frequency: 2.9 GHz, Processor family: 2nd gen Intel® Core™ i5, Processor model: i5-2310. Internal memory: 4 GB, Internal memory type: DDR3-SDRAM, Maximum internal memory: 32 GB. Total storage capacity: 1500 GB, Hard drive capacity: 1500 GB, Hard drive interface: Serial ATA III. Optical drive type: DVD Super Multi DL. Discrete graphics adapter model: Intel HD Graphics 2000, On-board graphics adapter model: Intel HD Graphics 2000, On-board graphics adapter family: Intel® HD Graphics
