Processor special features
| Idle States |
Y |
| Physical Address Extension (PAE) |
36 bit |
| Intel Demand Based Switching |
N |
| Intel Rapid Storage Technology |
N |
| Graphics & IMC lithography |
45 nm |
| Intel Fast Memory Access |
N |
| Intel Flex Memory Access |
N |
| Execute Disable Bit |
Y |
| Thermal Monitoring Technologies |
N |
| Intel Trusted Execution Technology |
Y |
| Intel Virtualization Technology (VT-x) |
Y |
| Processor package size |
37.5 mm |
| Processor ARK ID |
48504 |
| Intel® Quick Sync Video Technology |
N |
| Intel® Insider™ |
N |
| Intel 64 |
Y |
| Intel Clear Video Technology |
N |
| Intel Dual Display Capable Technology |
Y |
| CPU configuration (max) |
1 |
| Embedded options available |
N |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Y |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel Hyper-Threading Technology |
Y |
| Intel® Turbo Boost Technology |
Y |
| Intel Enhanced Halt State |
Y |
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel Clear Video Technology for MID |
N |
| Intel vPro Technology |
Y |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Intel FDI Technology |
Y |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
Y |
| Supported instruction sets |
SSE4.2 |
Memory
| Memory clock speed |
1333 MHz |
| Memory layout (slots x size) |
1 x 2 GB |
| Memory slots |
2x DIMM |
| Maximum internal memory |
4 GB |
| Internal memory |
4 GB |
| Internal memory type |
DDR3-SDRAM |
Ports & interfaces
| VGA (D-Sub) ports quantity |
1 |
| DVI port |
Y |
| PS/2 ports quantity |
1 |
| Line-in |
Y |
| Line-out |
N |
| Headphone outputs |
1 |
| S/PDIF out port |
N |
| Microphone in |
Y |
| HDMI ports quantity |
1 |
Design
| Number of 5.25" bays |
4 |
| Chassis type |
Midi Tower |
Networking
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
| Wi-Fi |
N |
Optical drive
| LightScribe |
N |
| Optical drive type |
DVD Super Multi DL |
Processor
| Processor boost frequency |
3.86 GHz |
| Processor cache |
4 MB |
| Processor lithography |
32 nm |
| Thermal Design Power (TDP) |
73 W |
| Maximum number of PCI Express lanes |
16 |
| Processor codename |
Clarkdale |
| Memory clock speeds supported by processor |
1066, 1333 MHz |
| Memory channels supported by processor |
Dual |
| Conflict Free processor |
N |
| PCI Express configurations |
1x16, 2x8 |
| FSB Parity |
N |
| Memory bandwidth supported by processor (max) |
21 GB/s |
| CPU multiplier (bus/core ratio) |
27 |
| Processor operating modes |
64-bit |
| Stepping |
K0 |
| Processor cores |
2 |
| Processor frequency |
3.6 GHz |
| Tcase |
72.6 °C |
| ECC supported by processor |
N |
| Memory types supported by processor |
DDR3-SDRAM |
| Bus type |
DMI |
| Maximum internal memory supported by processor |
16 GB |
| Processor cache type |
Smart Cache |
| Number of Processing Die Transistors |
382 M |
| PCI Express slots version |
2.0 |
Other features
| Drive device, buffer size |
64 MB |
| Floppy drive installed |
N |
| Graphics adapter family |
Intel |
| Expansion slots |
7 x PCI |
| TV tuner integrated |
N |
| Networking features |
Gigabit Ethernet |
Graphics
| On-board graphics adapter |
Y |
| Discrete graphics adapter model |
Intel HD Graphics |
| On-board graphics adapter base frequency |
733 MHz |
| Number of displays supported (on-board graphics) |
2 |
| On-board graphics adapter family |
Intel HD Graphics |
Storage
| Solid-state drive capacity |
80 GB |
| Number of SSDs installed |
1 |
| Hard drive speed |
5400 RPM |
| Total storage capacity |
1000 GB |
| Card reader integrated |
N |
| Hard drive interface |
Serial ATA II |
| Solid-state drive interface |
Serial ATA II |
Software
| Operating system architecture |
64-bit |
Expansion slots
| PCI Express x1 slots |
2 |
| PCI Express x16 slots |
1 |
Additionally
| InTru™ 3D Technology |
N |
| Ethernet LAN connection |
Y |
| Intel AES New Instructions |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| System bus data transfer rate |
2.5 GT/s |
| Processing die size |
81 mm² |

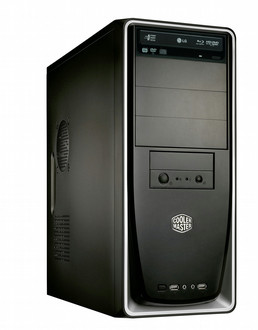

White Label PC4072I. Processor frequency: 3.6 GHz, Processor family: Intel Core i5-xxx, Processor model: i5-680. Internal memory: 4 GB, Internal memory type: DDR3-SDRAM, Maximum internal memory: 4 GB. Total storage capacity: 1000 GB, Hard drive interface: Serial ATA II, Hard drive speed: 5400 RPM. Optical drive type: DVD Super Multi DL. Discrete graphics adapter model: Intel® HD Graphics, On-board graphics adapter model: Intel® HD Graphics, On-board graphics adapter family: Intel® HD Graphics
