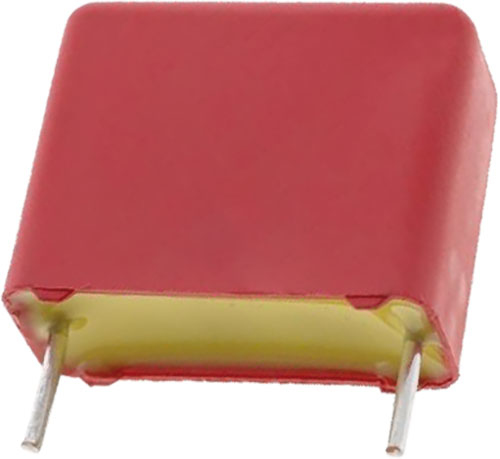

WIMA FKP1G011504B00JSSD Fixed capacitor DC Red capacitor

Polypropylene, 1500 pF, 400 VDC, 5 % The WIMA FKP 1 series was developed for extremly high pulse loads. It has an internal series connection, the metal foil electrodes being combined with a floating electrode metallized on both sides. The metal foil electrodes are safely contacted on both sides of the end surfaces. At the same time the capacitor is fully self-healing due to the floating electrode metallized on both sides. As regards pulse loading capability, WIMA FKP 1 represents the high-end of capacitor technology.
