Packaging content
| Drivers included |
Y |
| Display included |
N |
Processor special features
| CPU configuration (max) |
1 |
| Embedded options available |
N |
| Intel Hyper-Threading Technology |
Y |
| Intel® Turbo Boost Technology |
Y |
| Intel Enhanced Halt State |
Y |
| Supported instruction sets |
SSE4.2 |
| Execute Disable Bit |
Y |
| Thermal Monitoring Technologies |
N |
| Intel Trusted Execution Technology |
N |
| Physical Address Extension (PAE) |
36 bit |
| Processor package size |
42.5 mm |
| Processor ARK ID |
37151 |
| Intel 64 |
Y |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel Demand Based Switching |
N |
Graphics
| Discrete graphics memory type |
GDDR5 |
| Discrete graphics adapter model |
NVIDIA GeForce GTX 560 Ti |
| On-board graphics adapter |
N |
| Discrete graphics adapter memory |
1024 GB |
Processor
| CPU multiplier (bus/core ratio) |
24 |
| Processor operating modes |
64-bit |
| Bus type |
QPI |
| Memory bandwidth supported by processor (max) |
25.6 GB/s |
| Maximum internal memory supported by processor |
24 GB |
| Processor cache type |
Smart Cache |
| Number of Processing Die Transistors |
731 M |
| Number of processors installed |
1 |
| Processor boost frequency |
3.46 GHz |
| Number of QPI links |
1 |
| Processor cache |
8 MB |
| Processor lithography |
45 nm |
| Thermal Design Power (TDP) |
130 W |
| Processor codename |
Bloomfield |
| Stepping |
D0 |
| Processor cores |
4 |
| Processor frequency |
3.2 GHz |
| Tcase |
67.9 °C |
| ECC supported by processor |
N |
Storage
| Hard drive capacity |
2000 GB |
| Hard drive speed |
5900 RPM |
| Number of hard drives installed |
1 |
| Total storage capacity |
2000 GB |
| Card reader integrated |
Y |
| Hard drive interface |
Serial ATA III |
Optical drive
| Optical drive type |
DVD Super Multi DL |
Ports & interfaces
| PS/2 ports quantity |
2 |
| Headphone outputs |
1 |
| S/PDIF out port |
Y |
| Microphone in |
Y |
| DVI port |
Y |
| Mini HDMI ports quantity |
1 |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
| DC-in jack |
Y |
Other features
| Networking features |
Gigabit Ethernet |
| Graphics adapter family |
NVIDIA |
| Processor manufacturer |
Intel |
Memory
| Internal memory type |
DDR3-SDRAM |
| Memory clock speed |
1333 MHz |
| Memory layout (slots x size) |
3 x 2 GB |
| Internal memory |
6 GB |
Expansion slots
| PCI Express x16 slots |
3 |
| PCI slots |
1 |
| PCI Express x1 slots |
3 |
Networking
| Wi-Fi |
N |
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
Performance
| Motherboard form factor |
ATX |
| Audio output channels |
7.1 |
Software
| Operating system architecture |
64-bit |
Additionally
| System bus data transfer rate |
4.8 GT/s |
| Processing die size |
263 mm² |
| Ethernet LAN connection |
Y |
| Intel AES New Instructions |
N |
| Ethernet LAN (RJ-45) ports quantity |
1 |

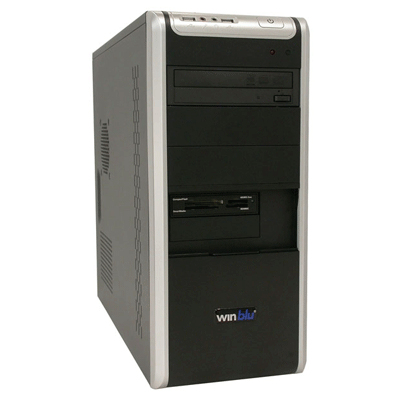

Winblu L7 858W7. Processor family: Intel Core i7-xxx, Processor model: i7-960, Processor socket: Socket B (LGA 1366). Internal memory type: DDR3-SDRAM, Memory layout (slots x size): 3 x 2 GB. Hard drive interface: Serial ATA III. Optical drive type: DVD Super Multi DL. Discrete graphics adapter model: NVIDIA GeForce GTX 560 Ti, Discrete graphics memory type: GDDR5
