Ports & interfaces
| VGA (D-Sub) output ports |
1 |
| RS-485 ports |
1 |
| eSATA ports quantity |
1 |
Packaging content
| Handheld remote control |
Y |
Hard drive
| Hard drive capacity |
2000 GB |
| Number of hard drives supported |
2 |
| Maximum hard drive capacity |
6000 GB |
Video
| Display frame rate |
120 fps |
| Video capturing speed |
120 fps |
Technical details
| Total storage capacity |
2000 GB |

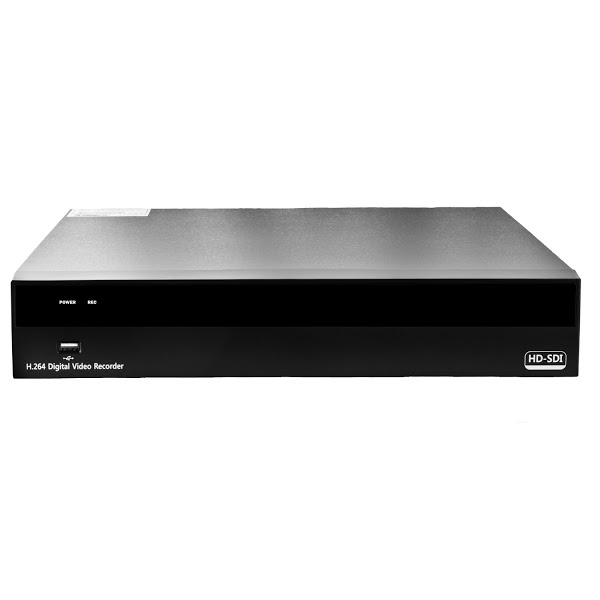

HDV043 - 1080p HD-SDI 4 Channel DVR with 2TB HDD
- Real Time Full HD Display & Recording at 120fps at 1080p
- Large 2 TB Hard Disk Drive of Storage (Max. 6 TB with 2 HDD Bays)
- 3G/4G LTE Smart Phone & Tablet Monitoring with Free Mobile Apps
- Compatiable with PC and Mac OSX 10.6.5 or Higher
- Remote Access via TCP/IP (Software & Internet Explorer: Up to 8 Users)
- Dual Streaming for Faster Remote Access
- Digitally Transmistted Full HD-SDI Video Signals
- No Packet Loss or Compression Delays
- Digital Zoom of Up to 8x in Live View or Playback Mode
- Email Notification & Free DDNS Service
- Central Monitoring Software (CMS): Max. 1024 Channel Monitoring
- Pentaplex (Live, Playback, Record, Backup, & Network Simultaneously)
- Programmable Resolution & Frame Rate on Each Channel
- 4 Video Inputs & 1 HDMI, 1 VGA, 1 Composite & 1 Spot Output
- 4 Audio Inputs & 1 Output and 4 Alarm Inputs & 1 Output
- Supports RS485 (PTZ Camera Operation)
- E-SATA Port (Extended Storage Capacity)
- Back Up: USB Flash Drive, & Network (via CMS)
- Operating Interface: Mouse, USB Remote, & Network
