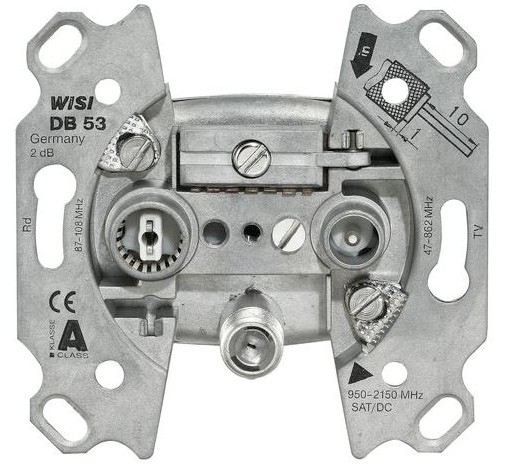

Wisi DB 53 Coaxial Silver socket-outlet

Connections in IEC - and F-technology Inputs
Frequency range: 47...2150MHz.

Outputs
- Frequency range TV: 47...68/174...862MHz.
- Frequency range FM: 87.5...108MHz.
- Frequency range SAT: 950...2150MHz.
- Insertion loss TV: <2dB.
- Insertion loss FM: 1.5dB.
- Insertion loss SAT: <2dB.
- Decoupling TV-SAT: ≥15dB (typ. 25dB).
- Return loss TV: ≥14dB (≤ -1.5dB per octave starting 40MHz, ≥10dB).
- Return loss Input: ≥4dB.
- Return loss FM: ≥10dB.
- Return loss SAT: ≥10dB.
- Power passing: 24V DC (remote power 500mA).

Connections
- Outer conductor clamp: 7.5mm.
- Inner conductor clamp: 0.8...1.3mm.
- F-socket: 1 pcs.
- IEC socket: 1 pcs.
- IEC-plug: 1 pcs.

General data
- Screening factor: >85dB (class A).
- Dimensions (width x height x depth): 70x70x22mm.
- Installation depth: 35mm.
