Processor special features
| Intel Flex Memory Access |
N |
| Intel Virtualization Technology (VT-x) |
Y |
| Intel® Insider™ |
N |
| Intel 64 |
Y |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel Demand Based Switching |
Y |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel FDI Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Intel vPro Technology |
N |
| Intel Clear Video Technology for MID |
N |
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel Enhanced Halt State |
Y |
| Intel Hyper-Threading Technology |
N |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Y |
| CPU configuration (max) |
1 |
| Intel Dual Display Capable Technology |
N |
| Intel Clear Video Technology |
N |
| Intel® Quick Sync Video Technology |
N |
| Processor ARK ID |
42927 |
| Intel Trusted Execution Technology |
Y |
| Intel Fast Memory Access |
N |
| Intel Rapid Storage Technology |
N |
| Intel® Turbo Boost Technology |
Y |
Processor
| Idle States |
Y |
| Bus type |
DMI |
| Memory types supported by processor |
DDR3-SDRAM |
| Supported instruction sets |
SSE4.2 |
| ECC supported by processor |
Y |
| Tcase |
72.7 °C |
| Maximum internal memory supported by processor |
32 GB |
| Processor frequency |
2.4 GHz |
| Stepping |
B1 |
| Processor operating modes |
64-bit |
| Embedded options available |
Y |
| FSB Parity |
N |
| Number of Processing Die Transistors |
774 M |
| PCI Express configurations |
4x4, 2x8, 1x16 |
| Conflict Free processor |
N |
| Memory channels supported by processor |
Dual |
| Memory bandwidth supported by processor (max) |
21 GB/s |
| Memory clock speeds supported by processor |
1333, 1066, 800 MHz |
| Processor cache type |
Smart Cache |
| Processor code |
SLBLJ |
| Physical Address Extension (PAE) |
36 bit |
| Maximum number of PCI Express lanes |
1 |
| Processor package size |
37.5 mm |
| Thermal Monitoring Technologies |
N |
| Execute Disable Bit |
Y |
| Processor boost frequency |
2.8 GHz |
| Processor cache |
8 MB |
| Number of processors installed |
1 |
| Processor cores |
4 |
| Thermal Design Power (TDP) |
95 W |
| CPU multiplier (bus/core ratio) |
18 |
| Processor lithography |
45 nm |
Other features
| Graphics adapter family |
Aspeed |
| Motherboard manufacturer |
Asus |
Storage
| Hot-swap |
Y |
| Hard drive interface |
Serial ATA II |
| RAID support |
Y |
| Number of hard drives supported |
6 |
| Total storage capacity |
1000 GB |
| Number of hard drives installed |
2 |
| Hard drive capacity |
500 GB |
| Internal drive bays |
6 x 3.5" |
| Hard drive size |
3.5 " |
Power
| Power supply |
550 W |
| Power supply input frequency |
50 - 60 Hz |
| Number of power supply units |
1 |
Networking
| Networking features |
Gigabit Ethernet |
Expansion slots
| PCI Express slots version |
2.0 |
| PCI Express x8 slots |
1 |
| PCI Express x16 slots |
1 |
| PCI slots |
2 |
Memory
| Maximum internal memory |
16 GB |
| Internal memory |
4 GB |
| Memory slots |
4 |
| Memory clock speed |
1333 MHz |
| ECC |
Y |
| Internal memory type |
DDR3-SDRAM |
Graphics
| Maximum graphics adapter memory |
8 MB |
Design
| Chassis type |
Rack (2U) |
| Optical drive type |
DVD-RW |
Additionally
| Intel AES New Instructions |
N |
| Ethernet LAN connection |
Y |
| System bus data transfer rate |
2.5 GT/s |
| Graphics |
AST2050 |
| Processing die size |
296 mm² |
| Chipset |
Intel 3420 |
| InTru™ 3D Technology |
N |
| Ethernet LAN (RJ-45) ports quantity |
2 |

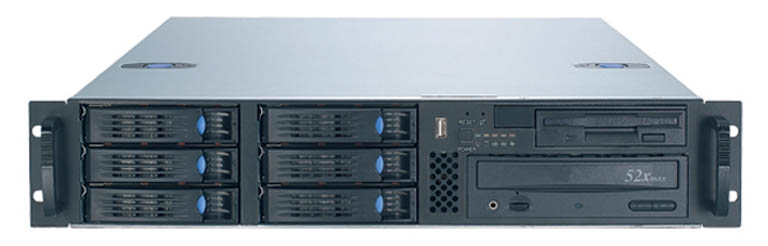

Wortmann AG TERRA server 4221. Processor frequency: 2.4 GHz, Processor family: Intel® Xeon® 3000 Sequence, Processor model: X3430. Total storage capacity: 1000 GB, Hard drive size: 3.5", Hard drive interface: Serial ATA II. Internal memory: 4 GB, Internal memory type: DDR3-SDRAM, Maximum internal memory: 16 GB. Maximum graphics adapter memory: 8 MB. Networking features: Gigabit Ethernet
