Processor
| Number of QPI links |
2 |
| Processor boost frequency |
2.66 GHz |
| Processor cache |
12 MB |
| Number of processors installed |
1 |
| Maximum number of SMP processors |
2 |
| Bus type |
QPI |
| Supported instruction sets |
SSE4.2 |
| ECC supported by processor |
Y |
| Tcase |
77.6 °C |
| Maximum internal memory supported by processor |
288 GB |
| Processor frequency |
2.4 GHz |
| Stepping |
B1 |
| Processor operating modes |
64-bit |
| Embedded options available |
Y |
| FSB Parity |
N |
| Conflict Free processor |
N |
| Memory bandwidth supported by processor (max) |
25.6 GB/s |
| Memory clock speeds supported by processor |
1066, 800 MHz |
| Processor cache type |
Smart Cache |
| Processor code |
SLBV4 |
| Physical Address Extension (PAE) |
40 bit |
| Thermal Monitoring Technologies |
N |
| Idle States |
Y |
| Execute Disable Bit |
Y |
| Thermal Design Power (TDP) |
80 W |
| Processor package size |
42.5 mm |
| Processor cores |
4 |
| CPU multiplier (bus/core ratio) |
18 |
| Processor lithography |
32 nm |
Processor special features
| Intel Rapid Storage Technology |
N |
| Intel 64 |
Y |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel Demand Based Switching |
Y |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel FDI Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Intel vPro Technology |
N |
| Intel Clear Video Technology for MID |
N |
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel Enhanced Halt State |
Y |
| Intel Hyper-Threading Technology |
Y |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Y |
| CPU configuration (max) |
2 |
| Intel Dual Display Capable Technology |
N |
| Intel Clear Video Technology |
N |
| Intel® Insider™ |
N |
| Intel® Quick Sync Video Technology |
N |
| Processor ARK ID |
47925 |
| Intel Trusted Execution Technology |
Y |
| Intel Flex Memory Access |
N |
| Intel Fast Memory Access |
N |
| Intel® Turbo Boost Technology |
Y |
Storage
| Internal drive bays |
6 x 3.5" |
| Hard drive size |
3.5 " |
| Hard drive interface |
Serial Attached SCSI (SAS) |
| RAID support |
Y |
| Number of hard drives supported |
6 |
| Total storage capacity |
600 GB |
| Number of hard drives installed |
2 |
Graphics
| Maximum graphics adapter memory |
64 MB |
Other features
| Motherboard manufacturer |
Intel |
| Number of drive bays |
1 x 3.5" |
Memory
| Maximum internal memory |
96 GB |
| Memory slots |
12 |
| Memory clock speed |
1333 MHz |
| ECC |
Y |
| Internal memory |
12 GB |
| Internal memory type |
DDR3-SDRAM |
Ports & interfaces
| VGA (D-Sub) ports quantity |
1 |
Power
| Power supply |
750 W |
| Number of power supply units |
1 |
Networking
| Networking features |
Gigabit Ethernet |
Design
| Chassis type |
Rack (2U) |
| Optical drive type |
DVD-RW |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
2 |
| Intel AES New Instructions |
Y |
| Ethernet LAN connection |
Y |
| System bus data transfer rate |
5.86 GT/s |
| Chipset |
Intel 5500 |
| InTru™ 3D Technology |
N |

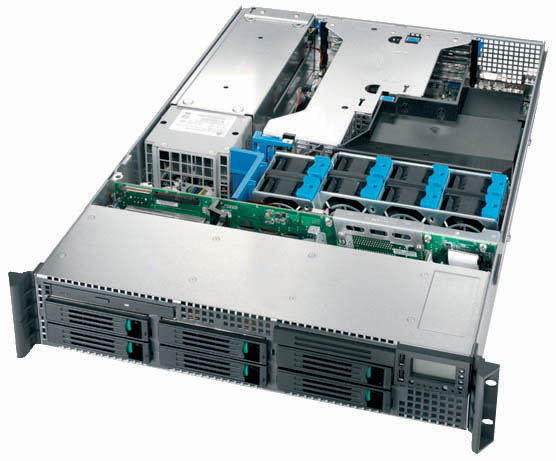

Wortmann AG TERRA Server 6220. Processor family: Intel® Xeon® 5000 Sequence, Processor model: E5620, Processor cache type: Smart Cache. Hard drive interface: Serial Attached SCSI (SAS), Internal drive bays: 6 x 3.5". Internal memory type: DDR3-SDRAM, Memory layout (slots x size): 3 x 4 GB. Networking features: Gigabit Ethernet. Compatible operating systems: MS Windows Server 2003/2008 MS Windows Server 2008 R2
