Features
| Type |
Freestanding rack |
| Maximum weight capacity |
800 kg |
| Form factor |
32U |

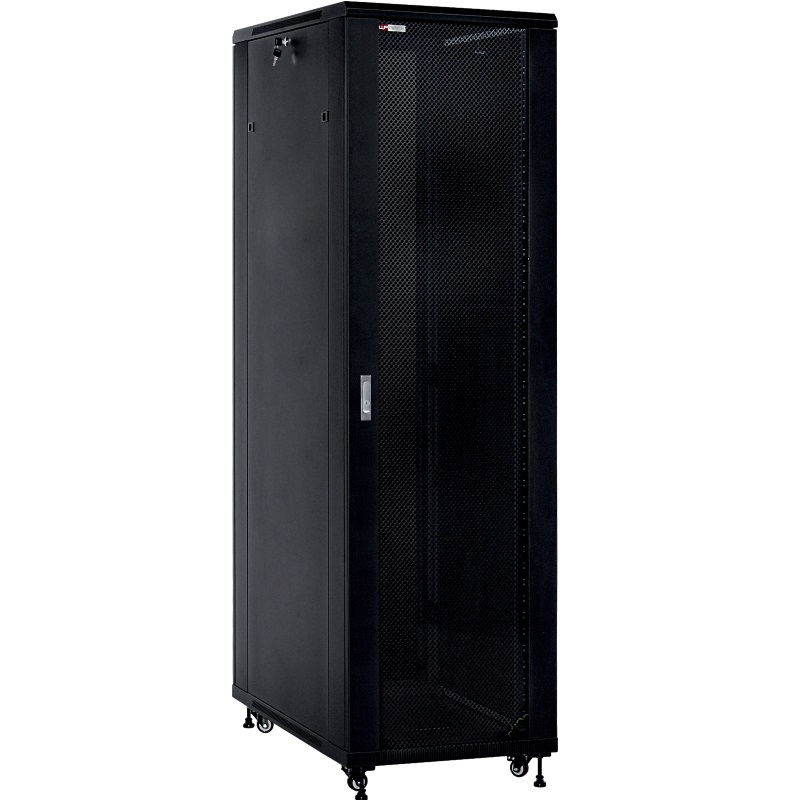

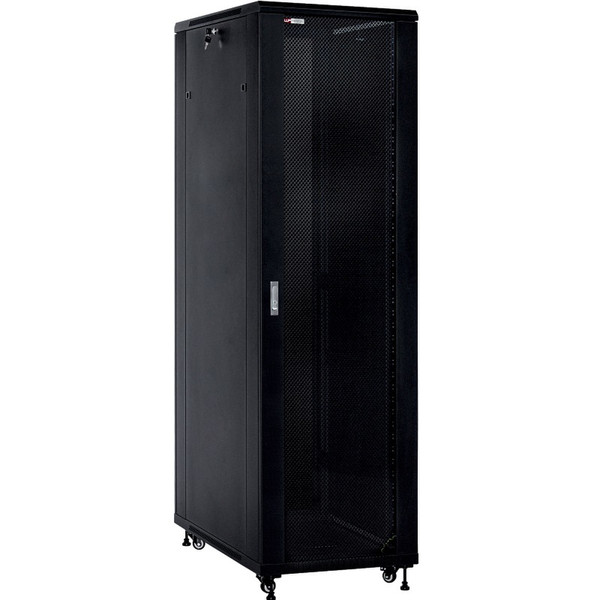

48.26 cm (19 ") , 32U, 600x1000x1610mm, IP 20, 800kg, RAL 9005, Unmounted
<b>The RSB series of professional rack is designed to meet the needs of ventilation of server and network cabinets installed in hot environments.</b>
The perforated front steel door, the 2mm steel frame, the locks (also on the removable side panels), the 4 wheels and 4 leveling feet make this series a simple turnkey solution for your installation.
Furthermore, the possibility of choosing to buy it assembled or disassembled, simplifies transport and reduces the risk of damage in transit to the site.
- Supplied fully unmounted in one reinforced cardboard box
- Main structure in 2mm solid steel, 1.5mm steel sides
- Perforated front steel door opens to 180° has a 1.5mm metal frame and is provided with a spring-loaded handle with key and perforated back steel door with standard lock
- Removable side panels, also with locks and keys, for easy installation of the equipment
- Cable entry both on top and bottom (with cover)
- Housing for 120mm fans or special ventilation kit on the top.
- Load capacity up to 800kg
- Complete with 4 numbered front rails with adjustable depth
- Complete with leveling feet and 4 casters (2 with a brake)
- Grounding kit included
- Dimensions WxDxH: 600x1000x1610mm
- 20 sets of screws included (screws + cage nuts)
- Color: Black, RAL 9005
- Unit: 32
- IP 20 protection class
