Power
| Power over Ethernet (PoE) |
Y |
| Operating voltage |
5 V |
Packaging content
| IR receiver included |
Y |
| IR blaster included |
Y |
| Mounting brackets included |
Y |
Ports & interfaces
| Remote (IR) input |
2 |
| Remote (IR) output |
2 |
| RJ-45 input ports |
1 |
| RJ-45 output ports |
1 |
| HDMI in |
1 |
| DC-in jack |
Y |
Technical details
| Bandwidth |
6.75 Gbit/s |
| Maximum transfer distance |
50 m |
| HDCP |
Y |
| Type |
AV transmitter & receiver |
| Audio system |
Multichannel |
Additionally
| AC adapter bundled |
Y |
| On/Off switch |
Y |
| Ethernet LAN connection |
Y |
| Colour depth |
36 bit |

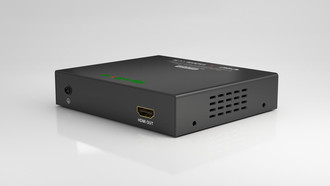

HDBaseT Extender Set with 2-Way IR and PoH (50m/164ft)
The EX-1UTP-IR-50-POH Extender set comprises of a Transmitter and Receiver to distribute full, uncompressed HD 1080p video @60Hz, HD multichannel audio with bidirectional discrete IR control of source and display from either location over distances of up to 50m/164ft using a single shielded or unshielded Cat5e/6 cable.
Featuring Power-over-HDBaseT, the Transmitter draws 12v power from a mains supply and passes along the length of a single Cat5e/6 cable with the video, audio and control signals to power the receiver - no power access is necessary at the display location for ease of installation and connection; meaning no additional power adaptors required and improved energy efficiency.
Transmitters include EDID management to manually handle device communication via DIP switch setting, with Receivers containing long cable mode to further encourage successful transmission. Both units also feature protection against ESD (electrostatic discharge) to further stabilise transmission with LED indication on the unit housing providing clear confirmation of power and signal link status. Both units also contain DIP settings .
Additionally, the EX-1UTP-IR-50-POH is fully cascadable, with transmission lengthened by connecting to multiple 50m/164ft extender sets for increased distribution and even greater flexibility, whatever the installation environment.
