Ports & interfaces
| Remote (IR) output |
1 |
| Remote (IR) input |
1 |
| Number of HDMI outputs |
1 |
| BNC input ports |
1 |
| HDMI in |
1 |
| BNC output ports |
1 |
| USB ports quantity |
1 |
| DC-in jack |
Y |
Technical details
| Bandwidth |
6.75 Gbit/s |
| Audio output channels |
7.1 channels |
| Type |
AV transmitter & receiver |
HDMI Over Coax with 2-Way IR (50m/164ft)

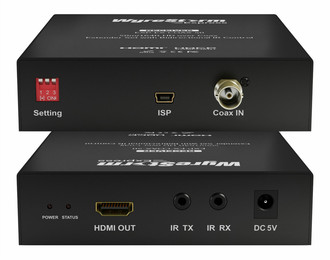

The WyreStorm Express™ EXP-EX-COAX-50 is a single cable point to point extender set using copper-core 75Ohm Coax cable to transmit 1080p HD video @60Hz and multi-channel HD audio on cable runs up to 50m (164ft) including wide-band, two-way IR control of both source and display location.
- Transmits 1080p content to 50m/164ft using single coax cable
- Bidirectional IR control of source and display
- EDID and cable distance management encourage device compatibility
- Enhanced ESD protection and auto feedback/equalization for less interference and increased reliability
The WyreStorm Express™ EXP-EX-COAX-50 is a single cable point to point HDMI extender set using copper-core 75Ohm Coax cable to transmit 1080p HD video @60Hz and multi-channel HD audio over distance up to 50m (164ft) including wide-band, two-way IR control from both source and display location.
The 'Analog Sun' may have set, but even in these days of digital distribution, the use of coax as a cable medium is still a popular requirement to transmit and control HD signals between sources and display location in legacy or mixed analog/digital systems such as aerial and cable/satellite installations, where coax is effective due to the low loss at high frequencies, vital for TV Set-top boxes and cable modem installations.
Key to any installation is successful transmission, with the EXP-EX-COAX-50 featuring EDID management to manually handle device communication and cable distance settings to fine tune signal extension based on the length of cable between devices to maximise compatibility and reliable delivery of the signal between source and display.
Maintaining the integrity of the distribution within the installation environment is also paramount and the EXP-EX-COAX-50 include protection against ESD (electrostatic discharge) to further stabilise transmission with LED indication on the unit housing providing clear confirmation of power and signal link status.
As scalable as they are reliable, the EXP-EX-COAX-50 can be cascaded by connecting additional multiple extenders to further lengthen transmission and offer greater flexibility, whatever the application.
The WyreStorm Express™ EXP-EX-COAX-50 is the perfect solution for retrofit HD distribution projects in which a Coax cable infrastructure is already present, as well for installers whose primary experience lies in aerial and satellite installations.
