Power
| Power over Ethernet (PoE) |
Y |
| Power consumption (transmitter) (max) |
5 W |
Ports & interfaces
| USB connector type |
USB Type-B |
| RS-232 input ports |
1 |
| HDMI in |
1 |
| DC-in jack |
Y |
Technical details
| Display Data Channel (DDC) input |
5 V |
| Maximum transfer distance |
100 m |
| HDCP |
Y |
| Type |
AV transmitter |
| Cable types supported |
Cat5e, Cat6 |
| Audio system |
Stereo |
Weight & dimensions
| Transmitter weight |
450 g |
| Transmitter dimensions (WxDxH) |
140 x 115 x 25 mm |
Additionally
| AC adapter bundled |
Y |
| Ethernet LAN connection |
Y |
Cat5e/6, HDMI , 1 x USB 2.0 (B type), 1 x RJ45 port , 1 x HDMI IN , 1 x HDMI OUT , 1 x RS232, 450g, black
NetworkHD Transmitter enabling distribution of connected HDMI devices to a display receiver for scalable HD Over IP Solutions using JPEG2000 compression technology.
WyreStorm NetworkHD changes the way AV distribution systems are designed and specified in projects by providing integrators with a simple, flexible and cost effective HD signal distribution and advanced Video Wall management solution applicable to a wide variety of commercial installation environments.
WyreStorm NetworkHD is a professional grade HD over IP extender and control system enabling the distribution of HDMI through a dedicated IP network switcher with powerful KVM and video wall functionality designed for commercial HD applications.
Comprising of an NHD-IP-RX receiver and NHD-IP-TX transmitter extender set together with an NHD-IP-CTL controller, the NHD-IP-RX and NHD-IP-TX extenders facilitate the transmission of an HDMI 1.3 signal (including Full HD 1080p video with 2.1 audio) to one or more HDMI LCD/LED panels or digital projectors over standard Ethernet (Cat5e/6/7) infrastructure.
The modular system architecture of NetworkHD removes the limitations of a traditional fixed platform I/O matrix system without compromising quality or reliability, whilst offering significant cost savings when designing large scale infrastructure systems as well as integrating other features such as Video Wall processing.
As simple as it is powerful, NetworkHD functions on a basic smart switch platform so does not require advanced integrator Network experience to install, nor does it require a managed network switch with VLAN configured, making it one of the simplest HDMI over IP systems available.
Configuring network switches takes minutes and distributions can be quickly and easily expanded by adding transmitters and receivers as required to enable the system to grow with the needs of the application, with Bonjour technology automatically discovering system components to make setup a breeze.

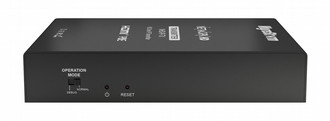

The NHD-IP-TX Transmitter enables the connection of HDMI sources and RS232 control to be distributed either locally via HDMI by-pass out or over distances up to 100m/328ft using Ethernet for TCP/IC connection with a network switch and/or NHD-IP-RX Receiver via a single Cat5e/6 cable, with almost limitless source connectivity by simply connecting additional NHD-IP-TX transmitters.
