Ports & interfaces
| DC-in jack |
Y |
| VGA (D-Sub) input ports |
1 |
| VGA (D-Sub) ports quantity |
1 |
| USB connector type |
Mini-USB A |
| HDMI in |
1 |
Technical details
| Firmware upgradeable |
Y |
| Display Data Channel (DDC) input |
5 V |
| Transition Minimized Differential Signaling (TMDS) input |
1 V |
| Bandwidth |
6.75 Gbit/s |
| Type |
AV transmitter & receiver |
| Cable types supported |
Cat5e, Cat6 |
| Maximum transfer distance |
100 m |
| HDCP |
Y |
Power
| Operating voltage |
19 V |
| Power consumption (max) |
15 W |
Additionally
| AC adapter bundled |
Y |
| Colour depth |
36 bit |
HDBaseT Extender with HDMI and VGA Auto-Switch, HDMI 1.3, 1080p, 6.75Gbps, PoH

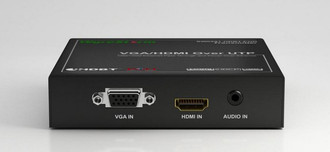

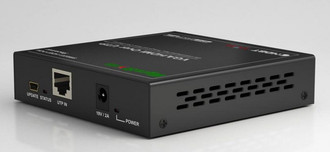

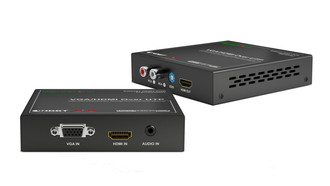

<b>The WyreStorm SW-0201-POH is a two-input HDMI and VGA switcher comprising of a transmitter and receiver that converts either input to an HDBaseT output to enable the transmission of VGA or HDMI sources over distances up to 100m/328ft using a single Cat5e/6 cable for lossless 1080p HD video and HD Audio distribution.</b>
Featuring powerful HDBaseT technology for stable and reliable transmissions that safeguard against electromagnetic interference, the SW-0201-POH also features Power-over-HDBaseT – the latest evolution of power-over-Ethernet – to enable display receiver operation without the need for mains power for even greater convenience and flexibility.
Additionally, the SW-0201-POH can be cascaded up to 7 times for larger distributions with each unit independently powered as a PoH receiver and as a pass-through to power the next receiver in the cable run.
VGA and HDMI inputs are automatically selected and switched when the unit detects a signal, with a smart detection feature prioritizing VGA over HDMI if two devices are transmitting at the same time.
The SW-0201-POH also includes Mini USB for firmware updates and RCA stereo outputs for connection to third party amplification and speakers in display zones
Both SW-0201-POH Transmitters/Receivers include auto equalization and amplification to ensure successful signal distribution over long cable distances including PoH without any loss in transmission quality
The SW-0201-POH offers an excellent solution to any commercial or residential environment where switching between VGA with audio and HDMI over distance is required, with the added benefit of stereo breakout for increased audio options and robust HDBaseT transmission technology negating the need for mains power at display points.
- 2:1 switching between VGA and HDMI inputs to HDMI output
- Robust HDBaseT technology for reliable distribution of lossless 1080p HD video and audio
- Transmission distance up to 100m/328ft
- Power-over-HDBaseT (PoH) capabilities – power to display receiver supplied by transmitter over Cat5e/6 cable. No mains power required at display zones
- Automatic input detection (VGA preferred)
- HDMI V1.3 compliant
- Full 3D support - frame packing/sequential (Bu-Ray) and interlaced stereoscopic (satellite/cable broadcasts)
- Converts DVI, R/L audio or SPDIF digital audio into complete HDMI
- Mini USB for firmware updates
- HDCP compliant
- Compact size for convenient and unobtrusive installation
- 3 year warranty
