Operational conditions
Temperature range (T-T) |
5 - 29.5 °C |
Display
Display size (HxV) |
55 x 27.5 mm |

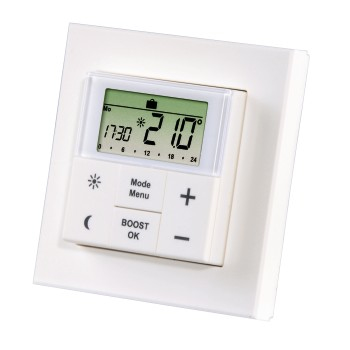

Wall Mount Thermostat for MAX! System
- The wall thermostat allows you to control several radiators centrally in one room without needing to adjust every single radiator thermostat
- The wall thermostat has its own temperature sensor and measures therefore the room temperature at the site of mounting and not at the radiator
- Easy control of up to 8 radiator thermostats and permanent display of the room/desired temperature
- Normal configuration via the MAX! system or directly at the wall thermostat
- Boost button for instant heating up of all radiators
- Large, easy-to-read LCD display (27.5 x 55 mm)
- Programming of comfort and cooling temperature
- Change between automatic and manual operation
- Entry of holiday and party function
- Power supply by battery and with a range of approx. 100 m (in free field)
- Frequency: 868.3 MHz
Note for Consumers:
- From type: BC-TC-C-WM-2 (2013) - The new MAX! wall mount thermostat of the MAX! heating control gives the user the possibility to control the temperature of a room locally without Internet connection.
- As the MAX! wall mount thermostat can directly be adjusted without a PC/the Internet, you will have a wireless solution consisting of the MAX! elements. The wall mount thermostat (111934), the radiator thermostat (111933) and the window sensor (111951) can be combined.
- The MAX! Cube as an interface to the Internet and the smartphone control can also be installed later. The user can thus control the room temperature offline and with a great precision.
The wall thermostat can be mounted to the supplied frame as well as to the frame of the following manufacturers:
- Berker: S.1; B.1; B.3; B.7 Glas
- Gira: System 55; Standard 55; E2; E22; Event; Espirit
- Merten: 1-M; Atelier-M; M-Smart; M-Arc; M-Star; M-Plan
- Jung: A 500; AS 500; A plus; A creation;
- Elso: Joy
