Scanning
Scan speed (black, normal quality, A4) |
33 |
Scan speed (black, normal quality) |
35 |
Scan technology |
CCD |
Optical scanning resolution |
600 x 600 DPI |
Maximum scan area |
219 x 303 mm |
Performance
Processor frequency |
360 MHz |
Security features |
Audit log, Fax security, HTTPS (secure scan and network server), Image overwrite security, IP filtering, Network authentication, Secure Print, User authentication |
Maximum duty cycle |
75000 pages per month |
Recommended duty cycle |
10000 pages per month |
Printing |
Mono printing |
Duplex functions |
Print |
E-mail protocols |
SMTP |
Digital sender |
N |
Copying |
Mono copying |
Faxing |
Mono faxing |
Scanning |
Colour scanning |
Print technology |
Laser |
Other features
Maximum media size (WxH) (imperial) |
8.5 x 14 " |
Email authentication |
Secure device login with network user name and password, Supports Kerberos (Windows 2000/UNIX/Windows Server 2003), SMB (Windows NT 4.0/Windows 2000/Windows Server 2003), PIN-based guest login |
Optional fax features |
Network server fax enablement |
Image scaling/enlargement range |
25 - 400 % |
Components |
098N02190,3635MFPV_X,650K29830 |
Minimum weight |
22.1 kg |
Height (max) |
543 mm |
Weight (max) |
22.1 kg |
All-in-one functions |
Fax, Copy, Scan |
Single pass duplex scanning |
N |
Scan resolution presets |
72 x 72, 100 x 100, 200 x 200, 300 x 300, 400 x 400, 600 x 600 |
Device manager |
Auto IP, BOOTP/RARP, Configuration card, DHCP, Email alerts, SNMP v.3, Xerox CentreWare Internet Services Embedded Web Server, Xerox Support Centre |
Minimum width (imperial) |
18.6 " |
Depth (min) (imperial) |
18.8 " |
Height (max) (imperial) |
21.4 " |
Height (min) (imperial) |
21.4 " |
Minimum media size (WxH) (imperial) |
5.5 x 8.5 " |
Scan bed (platen) size (imperial) |
8.6 x 11.9 " |
Hardware scan resolution |
600 x 600 DPI |
Depth (max) (imperial) |
18.8 " |
Maximum width (imperial) |
18.6 " |
Minimum hard disk space |
80 GB |
Acoustic pressure emissions |
59 dB |
Duty cycle letter size (maximum) |
75000 pages per month |
Print quality |
Standard, Toner saver mode |
Print resolution black (productivity) |
600 x 600 DPI |
Storage temperature (T-T) |
50 - 90 °F |
Warm-up time (from sleep mode) |
25 s |
Email features |
Address search capability (Internal address book or Public address book), Corporate address list via LDAPv3, Device login with network user name and password, Device network access and authentication, Direct document email from device, Directory address entry (Exchange/Notes/LDAP), Downloaded address list (comma-separated file format), Email CWIS confirmation sheet options, Email message body (user configurable), Email signatures, Guest mode access, Local user access and authentication, Manual address entry, Manual or directory Exchange/Notes/LDAP address searching, Network address list search via LDAP, PIN-based guest login, Scan to Email with Mail Delivery Notification, Scan to SMTP addresses, Scan to Email with LDAP support |
Maximum width |
472 mm |
Supported printer drivers |
AIX 5, HP UX 11, HP UX 11i, Solaris 9, Solaris 10, Windows 2003 Server, Windows XP, Windows XP Pro, Windows Vista |
Printer features |
Banner sheets, Booklet printing, Delay print, Image rotation, N-up, Overlays, Print from USB |
Minimum width |
472 mm |
Bit depth scan |
36 bit |
Document feeder type |
Duplex Automatic Document Feeder |
Scan speed (black and white) |
35 ppm |
First-page-out time, printing (black & white) |
9 s |
Scan bed (platen) size |
219 x 303 mm |
PCL fonts |
45 |
PostScript fonts |
136 |
Weight (max) (imperial) |
48.6 lbs |
Weight (min) (imperial) |
48.6 lbs |
Warm-up time (from power save mode) |
.4166 min |
Device management features (optional) |
Xerox Barcode Pro PS, Xerox CentreWare Printer Management for Microsoft, Novell, and UNIX, Xerox CentreWare for HP OpenView, Xerox CentreWare for Tivoli NetView, Xerox CentreWare for Unicenter TNG, Xerox CentreWare Web Network Management Utility, Xerox Device Types for SAP Environment, Xerox NDPS Gateway, Xerox SAP R/3 PostScript Intelligent Barcode Utility |
Copy handler enlarge |
400% |
Copy platen enlarge |
400% |
Copy handler reduction |
25% |
Copy platen reduction |
25% |
Reduce/enlarge increments |
1% |
Hard disk drive type |
Standard |
Maximum internal memory |
0.512 GB |
Depth (min) |
478 mm |
Scan file formats |
PDF, TIFF |
Networking features |
Ethernet, Fast Ethernet |
Functions |
Copy, Email, Print, Scan |
Height (min) |
543 mm |
Depth (max.) |
478 mm |
Input capacity
Paper handling |
Y |
Standard input capacity |
550 sheets |
Maximum input capacity |
1050 sheets |
Auto document feeder (ADF) input capacity |
50 sheets |
Operational conditions
Non-operating relative humidity (non-condensing) |
20 - 80% |
Operating temperature (T-T) |
61 - 86 °F |
Fax
Fax forwarding |
Y |
Fax coding methods |
JBIG |
Fax speed dialing, max numbers |
199 |
Modem speed |
33.6 Kbit/s |
Printing
Print speed (black, normal quality, A4/US Letter) |
33 ppm |
Time to first page (black, normal) |
8.5 s |
Power
Power consumption (average operating) |
600 W |
Power consumption (PowerSave) |
55 W |
Output capacity
Standard output capacity |
250 sheets |
Copying
Copy speed (normal quality, black, A4) |
35 cpm |
Time to first copy (black, normal) |
9 s |
Maximum number of copies |
999 copies |
Maximum copy resolution |
600 x 600 DPI |
Networking
Supported network protocols (IPv4) |
FTP, HTTP, HTTPs, LPR, SNMPv1, SNMPv2, SNMPv3, TCP/IP, UDP |
Wi-Fi |
N |
Paper handling
Maximum ISO A-series paper size |
A4 |
Additionally
Colour scanning |
Y |
Scan speed (color) |
23 ppm |
Ethernet LAN connection |
Y |
Maximum memory |
512 MB |
Scan speed (colour, A4) |
22 ppm |

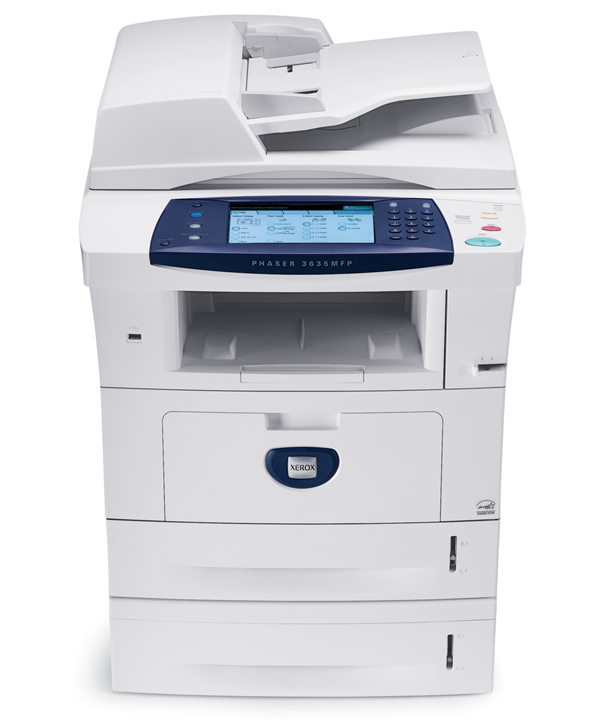

Phaser 3635MFP, 35ppm, A4 Network Print, Copy, Scan, Fax, 2X500 Sheet Paper Tray, Conv.Stapler, 220V
Competitive Edge
- USB flash drive printing and scanning not supported by many competitive products
- Colour touch screen interface is not present on many competitive products, providing convenient access to all basic and advanced features
- Xerox Standard Accounting software provides superior accounting features than competitive products that let you track and analyze device usage by function
- Larger standard hard drive than offered by competitive products
Performance and Value Features
- Fast speeds - up to 33 ppm and as fast as 9 seconds to first copied page - keep up with your busy pace
- Secure Print and Secure Fax protects your confidential documents if you choose to require a password entry at the device before printing
- Outstanding print resolution at 1200 image quality that won't slow down overall performance
- Save paper and money with automatic two-sided output, and N-up and booklet printing features that let you print multiple pages on one sheet of paper
Ease-of-use Features
- Big functions in a small size so the Phaser 3635MFP will fit where you need it and can replace single-function machines like a printer, copier, scanner, and fax machine
- Full-colour touch screen control panel makes it easy to operate and provides helpful instructions and graphics
- USB direct printing and scanning lets you save to or print from any USB flash drive - no computer needed
- Easy to install on your network with only a few clicks
Scanning Features
- Powerful scanning features include the ability to scan documents to email, public or private network folders, or to a USB memory drive
- Convert paper to digital files and easily email them around the office or around the world with optional Xerox SMARTsend™ scan capture and distribution software
- Edit and manipulate scanned documents at your desktop with Xerox Scan to PC Desktop™ software, which includes Nuance PaperPort® and OmniPage® software
- Store documents on the MFP, such as frequently-used forms or flyers, for easy printing whenever you need them
Software Solutions
Digitize . . . Organize . . . Distribute . . . Collaborate
With digital documents, you can easily create, search, re-use, and build upon your documents. Maximize your hardware investments with innovative software solutions from Xerox and Xerox Business Partners:
- Contain costs
- Share knowledge
- Accelerate workflow
- Integrate paper and electronic documents
- Manage and distribute documents effectively
