Performance
| Motherboard form factor |
Micro ATX |
| Audio system |
High Definition Audio |
Other features
| Graphics controller |
NVIDIA GeForce 7100 |
Internal I/O
| USB 2.0 connectors |
6 |
| ATX Power connector (24-pin) |
Y |
| Power fan connector |
Y |
| Floppy disk drive connector |
Y |
| CPU fan connector |
Y |
| Chassis intrusion connector |
Y |
| Front panel audio connector |
Y |
Memory
| Number of memory slots |
2 |
| Maximum internal memory |
4 GB |
Expansion slots
| Expansion slots |
1 PCI Express x16 \n1 PCI Express x1 \n2 PCI |

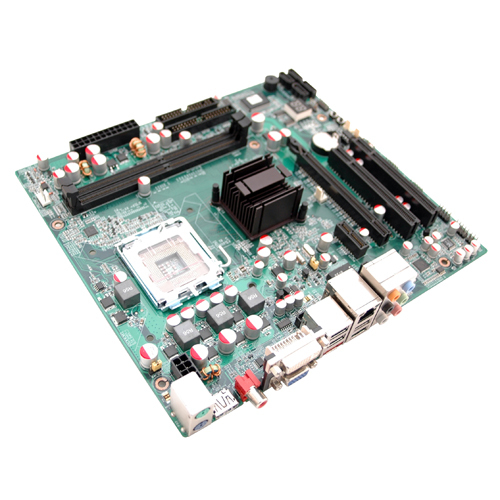

nForce 630i with Integrated GeForce 7150 Graphics
The nForce® 630i motherboard supports a full range of Intel CPUs and up to 4 GB of DDR2-800 memory. The onboard Geforce graphics delivers an amazing Windows® Vista™ experience and outstanding graphics. Plus, you can connect your PC directly to any High Def displays with the onboard HDMI or DVI output for viewing HD quality content.
Features
High Definition Audio (HDA)
High definition audio brings consumer electronics quality sound to the PC delivering high quality sound from multiple channels. Using HDA, systems can deliver 192kHz/32-bit quality for eight channels, supporting new audio formats.
Networking with NVIDIA nForce
NVIDIA networking delivers the highest network throughput at the lowest CPU utilization. The manageable and stable NVIDIA networking solution results in better networking management and a lower total cost of ownership. Only NVIDIA integrates this level of networking features to allow you to take your online experience to the next level.
NVIDIA MediaShield™ Storage
Suite of features that safeguards your most important digital media assets; always reliable, scalable, and accessible. Includes RAID and SATA drive support.
NVIDIA Native Gigabit Ethernet
The industry's fastest Gigabit Ethernet performance eliminates network bottlenecks and improves overall system efficiency and performance.
PCI Express
Designed to run with PCI Express bus architecture. This bus doubles the bandwidth of AGP 8X, delivering 4GB/s of upstream data transfer and 4GB/s of downstream data transfer.
USB 2.0
A standard plug-and-play interface that provides easy-to-use connectivity for USB devices.
Windows Vista™ Capable
NVIDIA nForce®-based motherboards are perfect for Microsoft® Windows Vista™ when coupled with an NVIDIA® GeForce® GPU and 512MB of system memory.
