Processor
| Processor frequency |
775 MHz |
| Graphics processor family |
AMD |
| CUDA |
N |
Memory
| Graphics adapter memory type |
GDDR5 |
| Memory bus |
128 bit |
| Memory clock speed |
4000 MHz |
| Discrete graphics adapter memory |
1 GB |
Performance
| DirectX version |
11 |
| OpenGL version |
3.2 |
| Shader model version |
5.0 |
| PhysX |
N |
| TV tuner integrated |
N |
| HDCP |
N |
Other features
| HDMI |
Y |
| Mac compatibility |
N |
Ports & interfaces
| Interface type |
PCI Express 2.1 |
| HDMI ports quantity |
1 |
Power
| Minimum system power supply |
400 W |

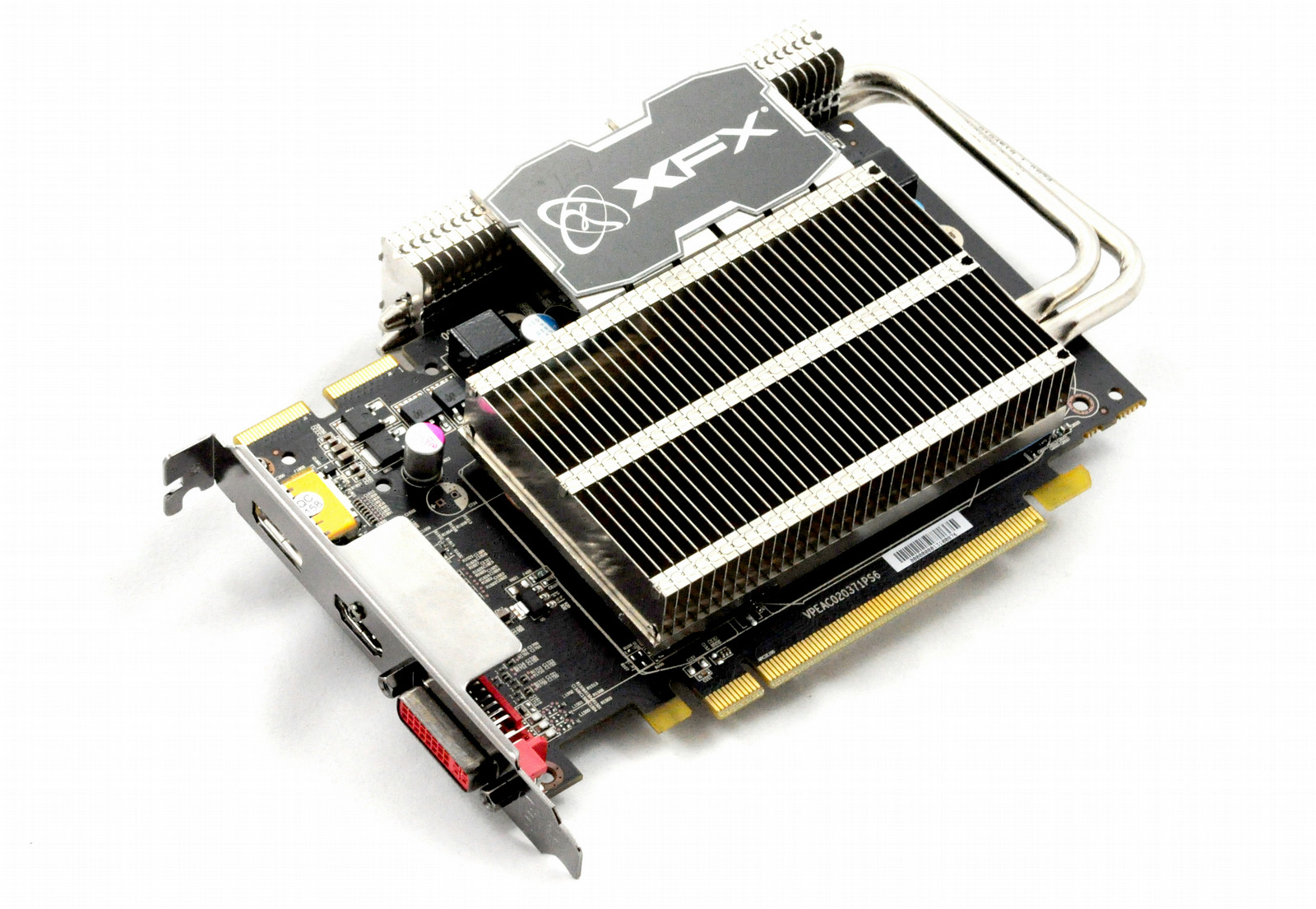

Radeon™ HD 5670 1024 MB DDR5 Heatpipe
All gamers were not created equal—until now. XFX is pleased to introduce the XFX ATI Radeon™ 5670 HD Graphics Card, offering the latest technology at a price that is transforming not only how the game is played, but who’s playing it. Designed for power users who want an immersive 3D gaming experience as well as powerful content and entertainment capabilities, the XFX ATI Radeon™ 5670 HD Graphics Card delivers the ultimate work/play punch. Capable of supporting the latest DirectX® 11 games, users enjoy significant gains in gaming potential over DirectX® 10.1. And, with Microsoft® 7 support, users enjoy fast and easy video playback, editing and content transfer. Best of all, this power is packed in an energy efficient single-slot card that’s easy to install and requires no external power supply.
ATI Eyefinity Technology allows two or more display outputs operating simultaneously and cooperatively with one another. Support is available for Duplicated (Clone), Extended Monitor and Single Large Surface mode (SLS). SLS mode is capable of grouping multiple displays into a massive single large display for use with desktop workspace, video playback, with support for both windowed and full screen 3D applications.
ATI Eyefinity Requirements
- Windows Vista and Windows 7 operating system (Eyefinity is not supported in Windows XP)
- A graphics card with at least one native DisplayPort output
- Display with native DisplayPort
and/or
- Use of an certified active DisplayPort adapter is required to convert the DisplayPort output on the graphics card to an output compatible to the display when more than two displays are used in a multi-display configuration (available for purchase separately)
KEY FEATURES
- Up to 1 GB GDDR5 memory
- ATI Eyefinity technology with support for up to three displays (1, 3)
- Windows® 7 support
- ATI Stream technology (2)
- Designed for DirectCompute 11 and OpenCL
- Accelerated Video Transcoding (AVT) (2, 4)
- Compliant with DirectX® 11 and earlier revisions
- Supports Open GL 3.2
- 40 nm Process Technology
- ATI CrossFireX™ multi-GPU support for highly scalable performance (5, 8)
- ATI Avivo™ HD video and display technology (6, 7)
- Dynamic power management with ATI PowerPlay™ technology (6)
- DisplayPort, HDMI, 2xDualLink-DVI
- PCI Express® 2.1 support
