Performance
| Alarm input channels |
4 |
| Supported network protocols |
DDNS, UPnP, NTP, RTSP, HTTP, DHCP, SMTP, SNMP, P2P |
| Number of fans |
1 |
| Video input channels |
16 |
Ports & interfaces
| Audio RCA outputs |
1 |
| Audio RCA inputs |
1 |
| DC-in jack |
Y |
| VGA (D-Sub) output ports |
1 |
| eSATA |
Y |
| Power over Ethernet (PoE) |
Y |
Storage
| Maximum storage capacity |
18 TB |
| Total installed storage capacity |
12000 GB |
Power
| Power consumption (max) |
28 W |
Packaging content
| Handheld remote control |
Y |
Additionally
| On/Off switch |
Y |
| Выход HDMI |
Y |

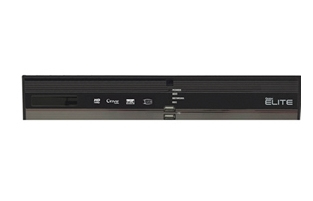

ELITE 16, H264, 4 PoE, 12TB, 96Mbps, 1080P
- The Xvision Elite range of NVRs are the only choice for projects of all sizes that require powerful features and mission critical reliability
- Real Time (30fps per camera) recording of up to 16 cameras at up to 1920x1080 resolution
- H264 video compression and Multi Streams supported for lower hard drive space and bandwidth usage
- Pre-installed Hard Drive/s with up to 18TB Recording Capacity, that are specially designed for CCTV use. The hard drive/s fitted inside this recorder are designed for 24/7 use in CCTV recorders, they use higher quality components than equivalent desktop drives (which are designed for occasional use) and are more economical to run and have a longer lifetime as they consume less power, produce less heat and generate less vibration. Plus they have a 3 year warranty and generate less noise than desktop drives, making them the best choice for all CCTV applications.
- Compatible with Xvision Elite Video Analytics cameras (records VA metadata)
- Powerful search tools, including by Time/Date, Motion, Alarm or Video Analytics type
- Designed for use with Xvision V1K and ONVIF Profile S compatible IP cameras
- Simultaneous VGA and Full HD 1080P HDMI monitor outputs and BNC output (shows Main output without GUI)
- Supports audio recording and 2 way communication via Xvision V1K compatible IP cameras
- USB Mouse for local control and ESATA port for adding up to 5 additional external hard drives
- Multiple user admin levels for controlling access to features
- Web viewing, playback, configuration and backup using Internet Explorer
- OSX Viewer for viewing cameras from Apple computers
- Simple internet access setup using P2P technology, no port forwarding required
- Email alerts (with camera snapshot) when events are detected
- Mobile phone viewing, playback and Push Video Alerts using free Android and iOS apps
- Free Windows and OSX CMS software for viewing, recording, control, configuration and backup over LAN or Internet
- USB port for local backup of recordings to USB Flash Drive
- 4 High Speed (100MB) PoE ports for IP cameras
- High Speed (100MB) Ethernet Port
- 1 Alarm Outputs and 4 Alarm Inputs built in
- Designed for internal use
