Video
| Analog signal format system |
NTSC, PAL |
| Video compression formats |
H.264 |
| Video capturing speed |
30 fps |
| Maximum video resolution |
1920 x 1080 pixels |
Networking
| Ethernet interface type |
Fast Ethernet |
Packaging content
| Handheld remote control |
Y |
| Mouse included |
Y |
| Screws included |
Y |
Technical details
| Total storage capacity |
3000 GB |
| USB connectivity |
Y |
| Motion sensor |
Y |
| Channels quantity |
8 channels |
Ports & interfaces
| RS-485 ports |
1 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) output ports |
1 |
Additionally
| Ethernet LAN connection |
Y |
| AC adapter bundled |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |

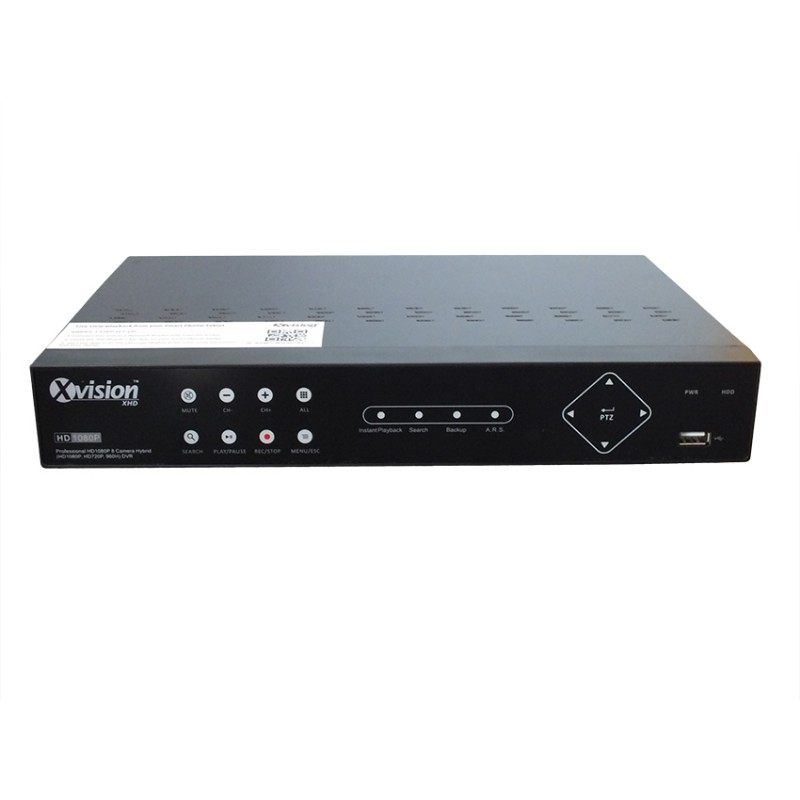

XHR1080D8, 3TB, H.264, 1080P/720P, VGA/HDMI/RCA/USB, 1.4kg
- Amazing 1080P resolution Full HD picture quality for over 6x the resolution of Analogue CCTV systems and over 3x the resolution of 720P AHD CCTV systems
- Hybrid inputs, compatible with AHD (1080P/720P) and Analogue (Standard/960H) cameras
- Auto sensing camera inputs automatically detect whether cameras are AHD or Analogue, allowing any combination to be used with the DVR
- Real Time (25fps per camera) 1080P resolution recording of up to 4 cameras
- H264 video compression and Multi Streams supported for lower hard drive space and bandwidth usage
- Pre-installed Hard Drive/s that are specially designed for CCTV use. The hard drive/s fitted inside this recorder are designed for 24/7 use in CCTV recorders, they use higher quality components than equivalent desktop drives (which are designed for occasional use) and are more economical to run and have a longer lifetime as they consume less power, produce less heat and generate less vibration. Plus they have a 3 year warranty and generate less noise than desktop drives, making them the best choice for all CCTV applications.
- Dropbox support for off site cloud recording of motion activated events
- Simultaneous VGA and Full HD 1080P HDMI monitor outputs
- 8 Audio Inputs for recording sound from compatible cameras or microphones
- IR Remote Control, USB Mouse and Integrated Touch Panel Keypad for easy control and setup
- Unique one touch quick access buttons, for one touch access to Instant Playback - Search - Backup and A.R.S (Auto Remote Setup, Shows QR code)
- Multiple user admin levels for controlling access to features
- Web viewing and playback using Internet Explorer, Chrome, Safari and Firefox
- Simple internet access setup using P2P technology, no port forwarding required
- Email alerts (with camera snapshot) when events are detected
- Mobile phone viewing, playback and Push Video Alerts using free Android and iOS apps
- Free Windows and OSX CMS software for viewing, recording, control, configuration and backup over LAN or Internet
- USB port for local backup of recordings to USB Flash Drive or USB DVD drive
- Supports UTC control of compatible cameras. UTC sends commands for controlling various functions on compatible cameras through the same coax cable as the video feed, saving on cabling. Functions supported include, full control of PTZ Speed Dome cameras and control of On Screen Display menus
- RS485 input for controlling Pelco D/P PTZ Speed Dome cameras
- 8 Alarm Inputs and 1 Alarm Output
- High Speed (100MB) Ethernet Port
- Designed for internal use
