Technical details
| Maximum extruder tip temperature |
230 °C |
| Filament thickness supported |
1.75 mm |
| Number of print heads |
1 |
| Support material cartridge capacity |
300 cm³ |
| Heated print platform |
N |
| Maximum travel speed |
100 mm/sec |
| Printing colours |
Blue, Green, Orange, Pigment blue, Pigment green, Black, Purple, Red, Violet, White, Yellow |
| Layer thickness (min) |
0.1 mm |
| Layer thickness (max) |
0.4 mm |
| Model file formats supported |
stl, gcode |
| Nozzle width |
0.4 mm |
| Printing material |
Polylactic acid (PLA) |
| Layer thickness supported |
0.1, 0.4, 0.2, 0.3 mm |
| Maximum build size (WxDxH) |
150 x 150 x 150 mm |
| Control type |
Touch |
System requirements
| Minimum RAM |
4 GB |
| Mac operating systems supported |
Mac OS X 10.9 Mavericks |
| Mac compatibility |
Y |
Ports & interfaces
| USB port |
Y |
| Compatible memory cards |
SD, SDHC |
| Card reader integrated |
Y |
| Wi-Fi |
N |
| USB version |
2.0 |
Design
| Cover |
Y |
| Built-in display |
Y |
| Viewing window |
Y |
Additionally
| Ethernet LAN connection |
N |
FFF, PLA 1.75mm, up to 100mm/s, 0.1/0.2/0.3/0.4mm Layer, 2.6'' FSTN LCN, USB 2.0/SD Card, 12kg
Print with any 3rd Party Filament

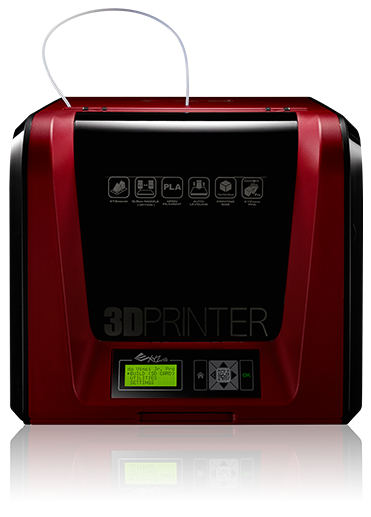

The da Vinci Jr. 1.0 Pro has adjustable temperature settings for the extruder nozzle, making it compatible with 3rd party 1.75mm PLA filaments.
With it's auto-loading filament system, the da Vinci Jr. 1.0 Pro ensures that all filament is fed properly.
Perfect Prints Every Time
The da Vinci Jr. 1.0 Pro uses an intuitive 9-point calibration detection system that accurately determines the distance between the extruder and the print bed.
XYZware Pro
The new XYZware Pro has increased maximum printing speed of 100mm/sec., decreasing the time you have to wait for your prints to be finished. With adjustable software settings, you can change the nozzle and print bed temperature, speed, print support and retraction settings.
XYZware Pro is compatible with third party g-codes*
*(Cura and Slic3r)
Nozzle Upgrade Available
A 0.3mm diameter extruder is available as a separate purchase add-on for the da Vinci Jr. series and it is perfect for intricate print jobs. The 0.3mm diameter extruder can provide a smoother print surface at a spectacular 50 micron resolution.
New Design, Better Prints
The da Vinci Jr. 1.0 Pro features a new wind duct design which enhances the cooling effect to provide a smoother printing performance.
