Packaging content
| User guide |
Y |
| Warranty card |
Y |
Satellite speakers
| Satellite speaker impedance |
6 Ω |
| Satellite speaker tweeters quantity |
1 |
| Satellite speaker crossover frequencies |
3000 Hz |
| Satellite speaker peak power |
150 W |
| Satellite speaker woofers quantity |
1 |
| Satellite speaker sensitivity |
88 dB |
| Satellite speaker frequency range |
57 - 45000 Hz |
| Satellite speakers RMS power |
50 W |
| Number of satellite speakers |
2 |
| Satellite speaker type |
2-way |
Center speaker
| Center speaker impedance |
6 Ω |
| Center speaker type |
2-way |
| Center speaker peak power |
200 W |
| Center speaker woofers quantity |
2 |
| Center speaker tweeters quantity |
1 |
| Center speaker crossover frequency |
2800 Hz |
| Center speaker sensitivity |
90 dB |
| Center speaker frequency range |
57 - 45000 Hz |
| Center speaker RMS power |
100 W |
Weight & dimensions
| Center speaker dimensions (WxDxH) |
500 x 202 x 174 mm |
| Center speaker weight |
6300 g |
| Satellite speaker weight |
4800 g |
| Satellite speaker dimensions (WxDxH) |
186 x 208 x 320 mm |
Audio
| Recommended usage |
Home theatre |
Additionally
| Wireless technologies |
Wired |

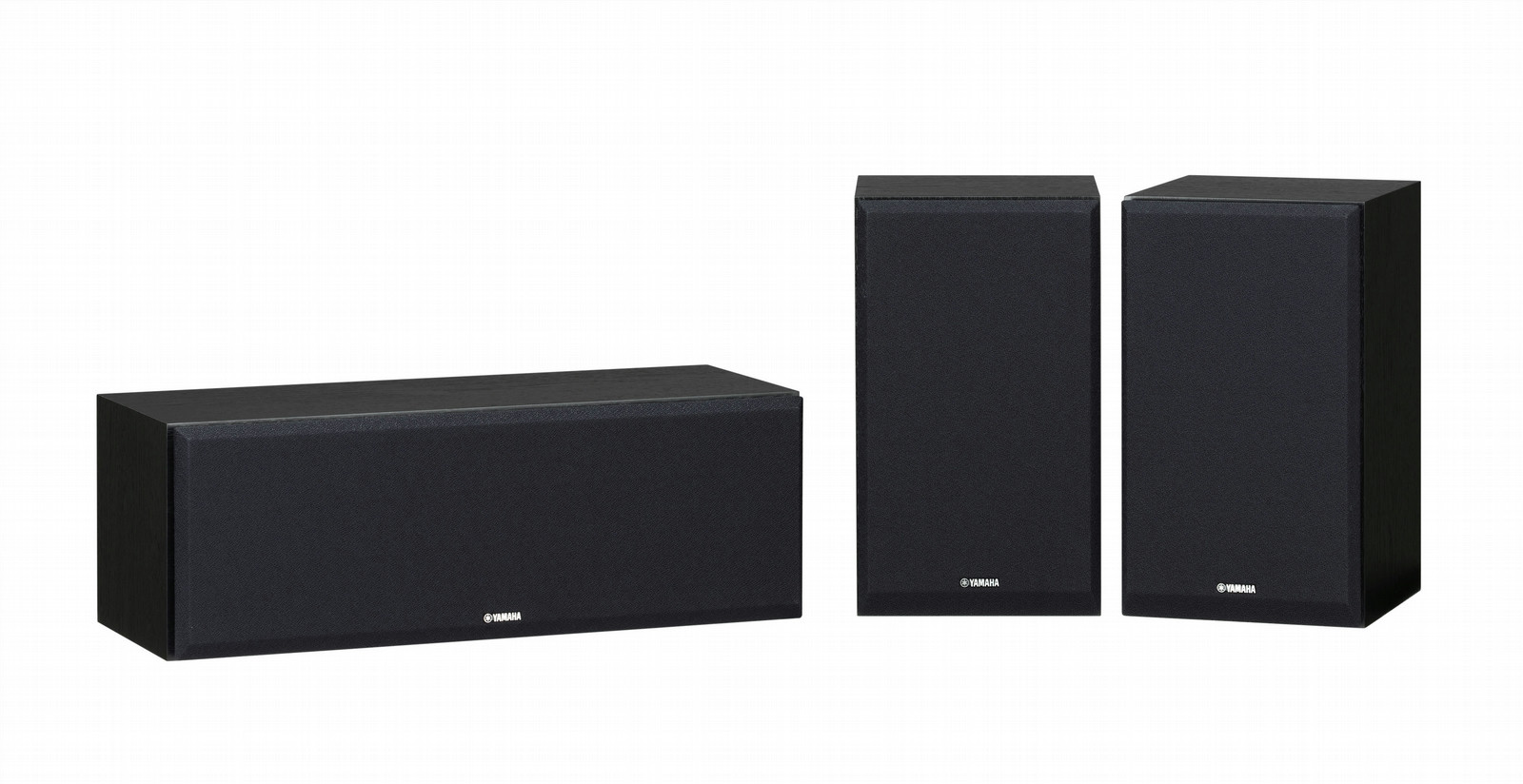

NS-P350 - 6ohms, 2.8/3kHz, 6.3/4.8kg
If the sound quality is not good enough in 2-channel playback, there is no chance of properly reproducing the source in surround sound. This is the idea that led to the development of these surround back and centre speakers for a 5-channel system. Both speakers use an all-new tweeter and PMD cone woofer combination. They have large cabinets to handle audio-rich data, ensuring that expansive and seamless theatre sound will fill your room.
As a next-generation unit, the NS-PC350 and NS-PB350 employ a new structure that puts an aluminium dome inside the voice coil. The aluminium’s Black Anodised processing suppresses the aluminium-specific character of the sound, providing expansive and accurate reproduction of the texture and nuance of the high frequencies. With a new diffuser shape and a new voice coil using CCAW (copper-coated aluminium wire) it achieves 45 kHz (–10 dB) reproduction with extended high frequency range while maintaining the amount of information and energy in the audible band.
Based on the idea of controlling spatial representation from the speaker, the waveguide horn directs the sound to reflect from walls and other surfaces. Thanks to the directivity of a left-right directional range of 135 degrees and a vertical range of 120 degrees optimised for home theatre use, it precisely recreates the sound field while minimising the impact of the room.
Incorporating 30% high quality white mica, the 13 cm (5”) woofer utilises a lightweight, high rigidity PMD (Polymer-injected Mica Diaphragm) cone that achieves ideal internal loss and high elasticity characteristics. The new design put both the voice coil and spider under the knife, achieving massive, expansive low tones.
