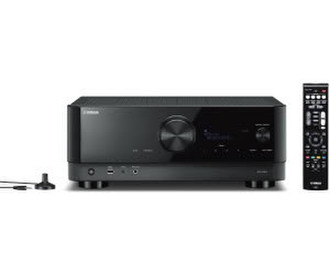

Yamaha RX-V6A

Product type: Audio/Video Receiver
Speaker configuration: 7.2
Output power per channel: 160 Watt

Technical specifications
Output power: 1.120 Watt
Output impedance: 4 Ohm
Speaker connection: Screw terminals
maximum sample rate: 384 kHz
Bitrate: 32 Bit

Connections
Analog audio inputs: 4x LINE In (Cinch/RCA, Stereo), 1x MM Phono In (Cinch/RCA, Stereo)
Analog audio outputs: 1x LINE Out (RCA, Stereo), Zone 2 (LINE Out, RCA, Stereo)
digital audio inputs: 1x S/PDIF IN (Cinch/RCA coaxial)
digital audio output: 1x S/PDIF OUT (Cinch/RCA coaxial)
HDMI ports: HDMI-ARC, 7x HDMI-In, 1x HDMI-Out
Preamp outputs: 2x Subwoofer (Cinch/RCA)
Front Connections: 1x Measurement Microphone (Setup Mic), Headphone Output
Data connection: 1x Network (Ethernet)
Connections for control signals: 1x 12V Trigger Output

Audio
Audio functions: CINEMA DSP 3D, SILENT CINEMA, Virtual CINEMA DSP, Pure Direct, Compressed Music Enhancer, High-Resolution Audio, Dynamic Range Control (DRC)
Dolby Formats: Dolby Atmos, Dolby TrueHD, Dolby Digital Plus
DTS Formats: DTS:X, DTS:X Pro, DTS HD Master Audio
Number of listening zones: 2

Video
Video Functions: 4K Pass-Through, 8K Pass-Through, HDR10+

Connectivity
Network functions: Audio Streaming, App Control, Multiroom, Network Streaming
Wireless transmissions: WLAN, Bluetooth, AirPlay
USB Interface: yes
HDMI-CEC: yes

Functions
Calibration System: YPAO R.S.C.
Reception areas: DAB+, FM (UKW), AM (MW)

Additional features
Dimensions: 435 x 245 x 377 mm
Weight: 9,8 kg
Color: black
