Technical details
| Bearing technology |
Long Life |
Performance
| Noise level (high speed) |
24 dB |
| Type |
Cooler |
| Suitable for |
Processor |
| Fan diameter |
120 mm |
| Supported processor sockets |
Socket AM3, Socket AM3+, Socket AM2+, Socket AM2, Socket FM1 |
Other features
| Rotational speed |
1200 RPM |

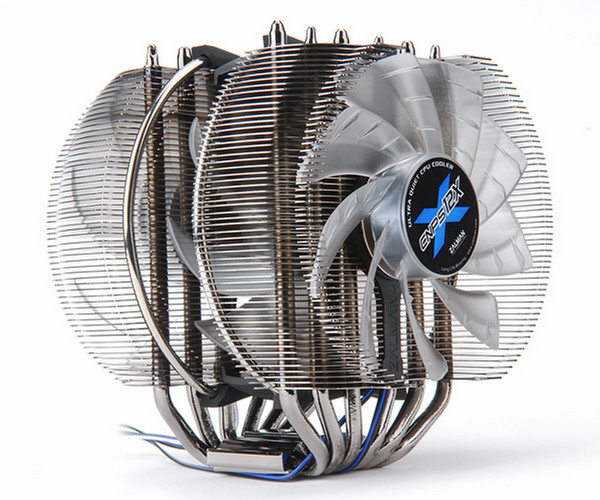

CNPS12X, CPU cooler, Triple Fan Technology
Powerful Cooling Performance
Optimally designed aluminum fins disperse heat away from the CPU via 6 of high performance heatpipes by utilizing I.H.D technology, while the high capacity 120mm Triple fans quickly cools the heatsink for stable operation of high performance CPUs.
Ultra Quiet Triple Blue LED FAN
Switching noise eliminated 120mm Triple Fans incorporated for ultra quiet operation and blue LEDs for cool aesthetics.
- ‘Switching noise’ is the high frequency harmonic noise that can result from voltage regulation.
VFP Dual Heatsink
Optimized dual heatsink, applying V.F.P(Variable Fin Profile) technology, maximized it’s performance through dual air-intake structure that increase Air Flow.
- Radiator Surface Area : 9,635
- Noise : 22dBA ±10% (with RC5)
W-DTH Base applied
As applying W-DTH(Whole-Direct Touch Heatpipes) technology, heatpipes in the Base Cover touch the CPU directly and transfer the CPU’s heat directly to heatpipes, thereby minimizing heat resistance and maximizing cooling performance in a short time.
Composite Heatpipe applied
By utilizing Composite Heatpipes, the heat transfer capacity enhanced by 50% compared to the ordinary Sintered-type Heatpipes.
- Composite Heatpipe : Featuring a ‘Sintered Metal’ type wick, resulting in outstanding capillary pumping performance, and a high thermal conductive design of ‘Axial Grooves’ which increases the heat transfer rate.
Versatile Compatibility
CNPS12X accommodates a broad range of sockets including Intel’s upcoming socket LGA2011 as well as AMD’s sockets.
LGA2011/1366/1156/1155/775
FM1/AM3+/AM3/AM2+/AM2
Moreover, thanks to highly optimized heatsink design, CNPS12X is able to be compatible with a Mid -Tower Case with its width is 180mm or wider.
