Performance
Channels quantity |
13 |
Frequency band |
2.4/5 GHz |
Spread spectrum method |
DSSS |
5 GHz |
Y |
VLAN support |
Y |
Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
Modulation |
OFDM |
2.4 GHz |
Y |
Power
Input current |
0.27 A |
Power over Ethernet (PoE) |
Y |
Input voltage |
36 - 57 V |
Antenna
Antenna connector type |
RSMA |
Operational conditions
Non-operating altitude |
0 - 4572 m |
Operating altitude |
0 - 2438 m |
Additionally
Transfer rate (Mbps) |
300 Mbit/s |
802.11a/b/g/n, Gigabit Ethernet, 2.4/5 GHz, PoE, 1140 g, White

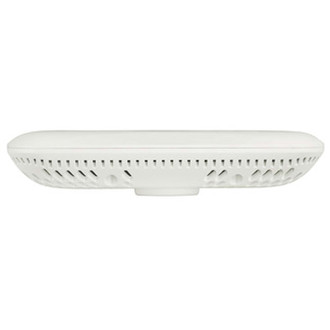

The performance-focused dual radio 802.11n AP 6532 access point provides customers with higher throughput and dual-radio performance while benefiting from WiNG 5 intelligence at the edge. This versatile AP leverages Motorola’s hallmark 802.11n band-unlocked radios, allowing IT to use the second radio to provide WiFi access or serve as a dedicated wireless sensor that scans both 2.4 and 5 Ghz bands for network assurance and security The access point will also continue to run if its connection to a local or remote controller is interrupted. The AP 6532 can serve as a virtual controller and coordinate the operation of up to 24 neighboring access points for mobility and QOS services.
The AP 6532 is a high performance dual radio 802.11n access point that offers higher throughput along with WiNG 5's direct forwarding, security, QoS services and site survivability. The second radio can be used for access or as a sensor for troubleshooting and security.
<b>Automatic channel and power optimization</b>
The AP 6532’s SMART RF feature automatically optimizes power and channel selection so each user gets always-on high-quality access and mobility.
<b>Gap-free security</b>
Includes layer 2-7 stateful packet filtering firewall, AAA RADIUS services, Wireless IPS-lite, VPN gateway, and location-based access control. Users can also add role-based access control and AirDefense Wireless IPS and rogue detection for premium-level security vigilance.
<b>Full performance using standard POE</b>
The AP 6532 is designed to provide full 802.11n performance using standard and lower cost POE 802.1 (af).
<b>Device mobility</b>
Supports fast secure roaming at Layer 2 and Layer 3. In addition, the network optimizes mobile performance with load balancing, pre-emptive roaming and rate scaling.
<b>Greater coverage per AP</b>
The powerful 24 dBm radio increases coverage, performance and obstruction penetration versus 23 dBm radios. In addition, receiver sensitivity has been increased proportionally so users have and increased ability to maintain high-performance access.
<b>Device and network acceleration</b>
Device and network performance can be accelerated through a virtual LAN feature via the switch/controller. Each access point can be virtualized into four unique VLANs, which can be customized to direct broadcast traffic to the intended recipient. This reduces overall network traffic while improving device performance and battery life up to 25%. This also reduces the overall number of access points required to provide unique device services.
<b>Easy deployment and maintenance</b>
Requires no configuration or manual firmware maintenance. The Motorola wireless controller discovers access points on the network and automatically downloads all configuration parameters and firmware, greatly reducing installation, maintenance and troubleshooting costs for Layer 2 and Layer e deployments.
<b>Multiband operation</b>
Allows concurrent sensing on 2.4 GHz and 5.0 GHz frequency bands for multiband intrusion protection or troubleshooting.
<b>Application support</b>
Supports Call Admission Control for optimized VoWLAN performance, as well as video streaming and data throughput for 802.11a/b/g/n clients.
