Performance
Web-based management |
Y |
Quality of Service (QoS) support |
Y |
Transmitting power |
27.7 dBmW |
VLAN support |
Y |
Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
Antenna
Antenna connector type |
RP-SMA |
Power
Power over Ethernet (PoE) |
Y |
Input voltage |
36 - 57 V |
Operational conditions
Non-operating altitude |
0 - 4572 m |
Operating altitude |
0 - 2438.4 m |
Protocols
Supported network protocols |
BOOTP, PPPoE, LLDP, DynDNS, DHCP |
Ports & interfaces
WAN connection |
Ethernet (RJ-45) |
DC-in jack |
Y |
Additionally
Ethernet LAN (RJ-45) ports quantity |
2 |
Transfer rate (Mbps) |
1000 Mbit/s |
Dual Radio, ExpressCard Slot, 6 element Façade antenna module, QIG, 802.11a/b/g/n, 27.7dBm, MIMO, Gigabit Ethernet, White

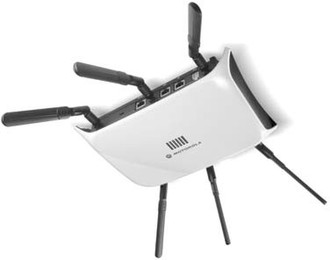

The AP 7131 802.11n Wireless Access Point delivers the throughput, coverage and resiliency required to build an all-wireless enterprise. The tri-radio design provides simultaneous support for high-speed wireless voice and data services, self-healing mesh networking and non-data applications such as Motorola’s Wireless IPS. The fully DFS-compliant 802.11n Draft 2.0 device offers speeds up to 600 Mbps per access point — six times the bandwidth of an 802.11a/g access point. And Adaptive AP provides unparalleled resiliency and flexibility, enabling the AP 7131 to be deployed as either a stand-alone wireless access point or adopted by a Motorola wireless switch for centralized configuration and management.
<b>Unmatched RF performance</b>
Conducted transmit power of 27.7dBm and superior receive sensitivity provide best in class range, coverage and application performance, even in harsh RF conditions
<b>802.11n support with 3X3 MIMO</b>
Delivers maximum wireless network throughput to support virtually any enterprise application, including voice and video
<b>Band-unlocked dual band design</b>
The ability to dedicate multiple radios to multiple functions increases security without increasing costs; band-unlocked radios enable 24x7 dual band Wireless IPS sensing on both 2.4GHz and 5GHz with concurrent 802.11a/b/g/n client access and mesh
<b>Gap-free dedicated 24x7 sensing via triple methodology rogue AP detection: on-channel, mobile unit and dedicated radio dual-band scanning</b>
Around the clock network protection through instant rogue detection
<b>Spectrum Analysis</b>
The ability to place a remote AP-7131 in Spectrum Analysis mode allows remote identification of local RF interference, enabling remote troubleshooting and issue resolution from the Network Operation Center (NOC) or other centralized location
<b>Adaptive AP: extending the enterprise</b>
Enables centralized management of mesh access points at remote sites including automatic firmware upgrades; provides site survivability for remote locations with 802.11a/b/g/n networks for unparalleled resiliency
<b>802.3af dual-radio support</b>
Standard Power-over-Ethernet (PoE) provides power for both radios; intelligent power management enables self-configuration based on available power; eliminates the need to upgrade the PoE infrastructure
<b>Integrated Router, DHCP server, Stateful Packet Inspection Firewall, AAA server, NAT, and Hotspot Gateway</b>
Eliminates need to purchase and manage additional equipment; simplifies provisioning of network services and public access
<b>Mesh networking</b>
Allows wireless extension of existing wired or wireless networks in remote or outdoor locations
<b>802.11i, WPA2, WPA and IPSec encryption</b>
End-to-end enterprise class wired and wireless security
