Management features
Multicast support |
Y |
Web-based management |
Y |
Quality of Service (QoS) support |
Y |
Data transmission
MAC address table |
16000 entries |
Switching capacity |
104 Gbit/s |
Number of VLANs |
4000 |
Throughput |
77376 Mpps |
Networking
Port mirroring |
Y |
IGMP snooping |
Y |
Link aggregation |
Y |
DHCP client |
Y |
10G support |
N |
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget |
740 W |
Power over Ethernet plus (PoE+) ports quantity |
48 |
Power over Ethernet (PoE) |
Y |
Operational conditions
Operating altitude |
0 - 4004 m |
Non-operating altitude |
0 - 4572 m |
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity |
48 |
Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
Copper ethernet cabling technology |
100BASE-TX, 1000BASE-T, 10BASE-T |
SFP module slots quantity |
4 |
Gigabit Ethernet (copper) ports quantity |
48 |
Protocols
Management protocols |
SNMPv1/v2/v3, Telnet, HTTP/HTTPS, FTP/TFTP, SSH |
Security
Access Control List (ACL) |
Y |
Design
Form factor |
1U |
Rack mounting |
Y |
24 x Gigabit Ethernet RJ-45, 4 x SFP, PoE/PoE+
Get all the wired networking features you need, plus the simplicity of a single point of management for all your wireless and wired network infrastructure.

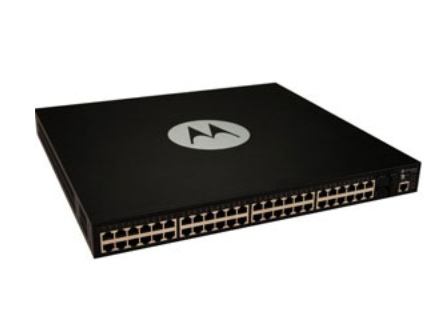

The perfect complement for your Motorola Solutions WLAN, the EX 3500 addresses all the access layer needs in your branch and remote office deployments. This economical, standalone solution offers all the features you need in a wired access switch, with the advantages of centralized management
through your Motorola WiNG-based NX Integrated Services Platforms. Now, not only can you easily support your wired networking requirements, you can also monitor and manage all your wired and
wireless equipment with the simplicity of a single pane of glass, reducing management time and complexity.
