Processor
| Processor frequency |
624 MHz |
Technical details
| Keyboard layout |
QWERTY |
| Keypad number of keys |
44 |
| Barcode reader |
Y |
| Phone function |
Y |
Data transmission
| Bluetooth |
Y |
| Data network |
EDGE, GSM |
| Bluetooth version |
1.2 |
Audio
| Built-in microphone |
Y |
| Speakers |
Y |
Ports & interfaces
| Interface |
RS-232, USB 1.1 |
Memory
| Internal memory type |
RAM |
| Internal memory |
64 MB |
| Compatible memory cards |
SDIO |
Networking
| GSM bands supported |
850, 900, 1800, 1900 MHz |
Operational conditions
| Operating temperature (T-T) |
14 - 122 °F |
Additionally
| RFID (Radio Frequency IDentification) reader |
N |
| Internal ROM |
128 MB |
| Battery performance |
1900 mAh |
8.89 cm (3.5 ") LCD 240 x 320 px, SDIO, XScale 624 MHz, 64MB/128MB ROM, RS-232, USB 1.1, GSM/EDGE, 802.11a/b/g, Bluetooth 1.2, 2D, QWERTY, 1900 mAh, 336 g, Black, Windows Mobile 5.0
Enterprise Digital Assistant
The first rugged enterprise digital assistant.

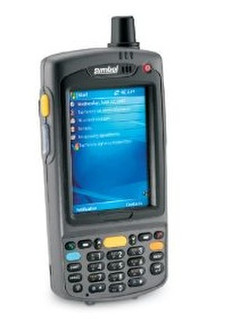

The flagship MC70 Enterprise Digital Assistant (EDA) is a rugged handheld mobile device that incorporates a mobile phone, PDA, computer, scanner and imager in a single unit designed for the rigors of all-day, everyday usage. This compact, lightweight device combines multi-mode wireless networking, voice and data communications, and advanced data capture in an enterprise productivity tool that can support nearly any application in any environment. Superior voice functionality includes outstanding acoustic performance and voice quality, handset, headset and speakerphone modes. Your mobile workers will have everything they need to increase productivity and efficiency inside and outside your four walls — from field workers reading meters and repairing equipment to drivers delivering packages, hospital workers checking lab results and medication orders, and more.
Industry-leading double impact testing (drop and tumble), IP54 sealing, integrated antennas
Lightweight yet rugged; built for year-round use in nearly any environment.
Marvell’s processor, designed for mobility: XScale PXA270 @ 624 Mhz
Desktop-like multimedia performance with lower power requirements.
Microsoft’s Windows Mobile 5.0 Phone Edition
Integrated multimedia, persistent memory.
Integrated GPS via Autonomous SiRF III GPS positioning system
The integrated highsensitivity GPS allows to track personnel and equipment and minimize transportation costs.
WWAN: GSM/EDGE compatibility
Voice and high-speed wireless data.
WLAN: 802.11a/b/g tri-mode radio; comprehensive VoIP support
Cost-effective voice and data connectivity in the office.
WPAN: Bluetooth v1.2, Class II
Wireless modem, printing synchronization, and more.
High quality speakerphone, microphone and transducer
Superior voice quality and performance.
3.5 in. QVGA color screen
Easy to view in any lighting.
Support for standard SD and SDIO cards
Provides additional memory and expandable functionality.
