Operational conditions
Operating temperature (T-T) |
-4 - 122 °F |
Processor
Processor frequency |
624 MHz |
Networking
Operating frequency |
5000, 2400 MHz |
Networking features |
WLAN |
Memory
Internal memory |
64 MB |
Compatible memory cards |
MMC, SD |
Data transmission
Bluetooth version |
1.2 |
Bluetooth |
Y |
Technical details
Phone function |
N |
Barcode reader |
Y |
Additionally
RFID (Radio Frequency IDentification) reader |
N |
Internal ROM |
128 MB |
Battery performance |
2200 mAh |

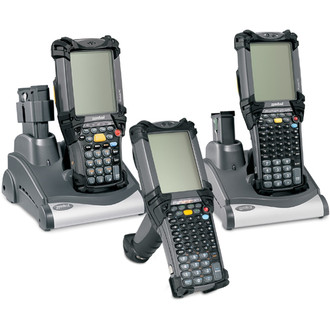

MC9090-G, Gun, Intel XScale PXA270 624 MHz, WLAN 802.11a/b/g, Imager, 9.652 cm (3.8 ") TFT 320x240px, 64/128MB, 53 key, Windows Mobile 6.1, Audio/Voice/Bluetooth
Designed for workers inside your four walls, the MC9090-G offers advanced data capture options and integrated wireless LAN/PAN plus a comfortable ergonomic pistol grip to enable real-time data collection in scan-intensive environments — in the warehouse, on the loading dock, out in the yard and in the back room or out on the sales floor of a retail operation.
Integrated 802.11 a/b/g WLAN radios
Flexible always-on connection maximises mobile worker productivity, while technology differentiating features deliver superior, reliable wireless connectivity; compatible with any WLAN in the world.
Exceptionally rugged construction
Passes the industry's most stringent drop and tumble tests; IP64 sealing rating; integrated internal antennas.
Common Motorola mobile device platform
Maximises the value of your applications — and software development investment.
Forward scanning, pistol grip ergonomics
Reduces user fatigue in scan intensive applications.
Intel XScale PXA270 processor: 624 MHz; enhanced memory architecture for persistent storage
Supports simple to complex multimedia applications.
Windows Mobile 5.0 or Windows CE 5.0
Provides choice of familiar Windows environment or robust application-specific environment.
1D, 2D, DPM and image capture capabilities
1D Standard-range scan engine, 1D Extended-range scan engine, omni-directional imaging engine, and DPM engine provide real-time data capture and access to business information to enable process automation, error-proofing, and track and trace capabilities.
WPAN: Bluetooth v1.2
Wirelessly synchronise, print, and connect to a headset.
Large display: exceptional clarity and contrast
Easy to read in a variety of lighting conditions.
