Storage
| Storage drive sizes supported |
2.5 " |
| Number of storage drives supported |
3 |
| Supported storage drive types |
HDD, SSD |
| Compatible memory cards |
SD |
| Card reader integrated |
Y |
Graphics
| Maximum graphics adapter memory |
16000 MB |
| On-board graphics adapter |
Y |
| Graphics adapter family |
Intel |
Expansion slots
| Mini PCI Express slots |
1 |
| PCI Express slots version |
2.0 |
Power
| AC adapter output current |
5 A |
| Number of power supply units |
1 |
| Power supply |
60 W |
| AC adapter output voltage |
12 V |
| Power supply type |
External AC adapter |
Motherboard
| Number of processors supported |
1 |
Processor
| Processor boost frequency |
3.1 GHz |
| Processor lithography |
14 nm |
| Thermal Design Power (TDP) |
28 W |
| L3 cache |
3 MB |
| Processor cores |
2 |
| Built-in processor |
Y |
| Processor frequency |
2.7 GHz |
Processor special features
| Intel Fast Memory Access |
Y |
| Intel Flex Memory Access |
Y |
| Execute Disable Bit |
Y |
| Idle States |
Y |
| Thermal Monitoring Technologies |
Y |
| Intel Trusted Execution Technology |
N |
| Intel® Small Business Advantage (Intel® SBA) |
Y |
| Intel Stable Image Platform Program (SIPP) |
N |
| Conflict Free |
Y |
| Intel® Quick Sync Video Technology |
Y |
| Intel® Insider™ |
Y |
| Intel 64 |
Y |
| Intel Clear Video Technology |
Y |
| Intel® Smart Response Technology |
Y |
| Intel Dual Display Capable Technology |
Y |
| Embedded options available |
N |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Y |
| Intel® Smart Cache |
Y |
| Intel® Identity Protection Technology (Intel® IPT) |
Y |
| Intel Hyper-Threading Technology |
Y |
| Intel® Turbo Boost Technology |
2.0 |
| Intel® Secure Key |
Y |
| Intel® Virtualization Technology (Intel® VT) |
VT-x |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Intel FDI Technology |
Y |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel TSX-NI |
N |
| Intel® OS Guard |
Y |
| Intel® Wireless Display (Intel® WiDi) |
Y |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
Y |
Memory
| Supported memory types |
DDR3L-SDRAM |
| Memory voltage |
1.35 V |
| Memory slots type |
SO-DIMM |
| Number of memory slots |
2 |
| Maximum internal memory |
16 GB |
Audio
| Audio output channels |
6.1 channels |
Design
| LED indicators |
Y |
| Cooling type |
Passive |
Ports & interfaces
| Headphone outputs |
1 |
| S/PDIF out port |
Y |
| Microphone in |
Y |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
4 |
| HDMI ports quantity |
2 |
| DC-in jack |
Y |
Packaging content
| Quick start guide |
Y |
| Power cord included |
Y |
Additionally
| InTru™ 3D Technology |
Y |
| Intel HD Audio Technology |
Y |
| Graphics |
Iris Graphic 6100 |
| Ethernet LAN connection |
Y |
| On/Off switch |
Y |
| Intel AES New Instructions |
Y |
| AC adapter bundled |
Y |
| Ethernet LAN (RJ-45) ports quantity |
2 |
Intel Core i5-5257U 2.7GHz, 2 x SO-DIMM DDR3L, 1 x SATA-III/2 x mSATA, Intel HD Graphics 5500, SD Card Reader, Audio (6 Channels), Windows 7/8.1/10, Linux
Fanless Mini PCs
Since 2014 NetBasis International has been selling an own range of fanless and energy-saving mini PCs under the label "Zenion". In particular, the "Silver Edition" is becoming increasingly popular, here modern technology meets great design. Additional computers in black housings and in NUC format complete the portfolio.

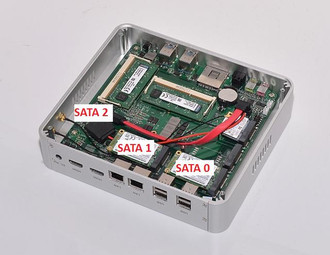

With different Intel processors of the 4th and 5th generation the "Zenion"s offer the appropriate performance for each application, thus covering almost every task and its associated requirements. Depending on the PC, the "Zenion" models can be equipped with up to 16 GB DDR3L memory. As mass storage, HDDs and/or SSDs can be used alternatively, in addition all the computers have at least one slot for mSATA on the motherboard. Depending on their configuration, the PCs have all standard connectors (HDMI, VGA, Audio, Mic, USB 2.0, USB 3.0, Ethernet, etc.). Wi-Fi and Bluetooth (via mini PCIe slot) are optionally available.
