Ports & interfaces
| USB port |
N |
| RJ-11 ports quantity |
1 |
Other features
| USB version |
2.0 |
| USB ports quantity |
1 |
| xDSL connection |
Y |
| Frequency range |
2.4 - 2.4835 GHz |
| Input current |
1 A |
| Supported protocols |
ANSI T1.413 (Full Rate ADSL)\nITU G.992.1 (DMT)\nITU G.992.3 (ADSL2)\nITU G.992.5 (ADSL2+)\nITU G.997.1\nAnnex L\nAnnex M |
| Rack mounting |
N |
Wireless LAN features
| Top Wi-Fi standard |
IEEE 802.11n |
| Wi-Fi standards |
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
Antenna
| Antenna type |
External |
| Antennas quantity |
2 |
Ethernet LAN features
| Ethernet LAN interface type |
Fast Ethernet |
| Ethernet LAN data rates |
10, 100 Mbit/s |
Protocols
| DHCP server |
Y |
| DHCP client |
Y |
Management features
| Web-based management |
Y |
| Reset button |
Y |
| Quality of Service (QoS) support |
Y |
| Universal Plug and Play (UPnP) |
Y |
Security
| MAC address filtering |
Y |
| Authentication method |
PAP/CHAP |
| Firewall security |
NAT |
Networking
| Routing protocols |
RIP-2, RIP-1 |
Additionally
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
4 |

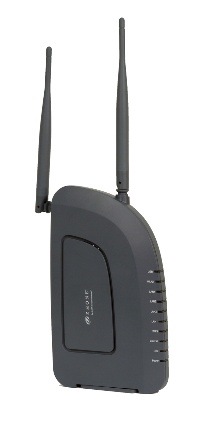

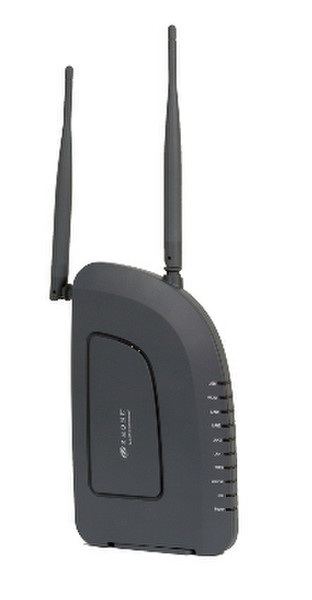

ADSL2+ 4 Port Router with WiFi N 2x2, 100 - 240VAC, 802.11b/g/n, black
- Integrated Phone Filter
- Auto-connect feature will automatically detect the first usable PVC and automatically detect PPPoE, PPPoA, and Bridge Protocol(with DHCP Server available)
- Configurable as either a Bridge or Router
- 802.11b/g/n Wireless Access Point with dual 5 dBi Antennae
- IGMP v1/v2 support for video deployments
- Filter traffic based on Destination or Source IP Address and MAC Addresses
- Traffic Class Rules based on Protocol, Source IP, Source Port, Destination IP, Destination Port, 802.1p
- Single Click DSL test - Tests Ethernet connection and ADSL Synchronization along with ATM OAM F5 segment pings and end-to-end pings.
- Configured through easy-to-use web interface
- DELT - Integrated Loop Testing for Line troubleshooting
- PPPoE/PPPoA redirect feature allows end user to easily enter PPP username/password on modem. Eliminates need for provider to configure the modem before installation.
- TR-069 remote management client certified on industry leading management systems.
The 6500 ADSL2+ family of endpoints deliver the required performance for multimedia applications at very competitive price points. The 6500 ADSL2+ endpoints, in compact form factor, have been successfully used for residential, business, in-building deployments such as hotel/motel, temporary housing, and dormitory-campus installations for high-speed internet access (HSIA) and video-on-demand services.
The Zhone 6500 ADSL2+ endpoints are easily user-installed. The embedded web-based user interface is designed to simplify ADSL deployment. All products provide an Ethernet connection that is auto-sensing, eliminating the worry about connection cable type (straight-through vs crossover).
The 6500 ADSL2+ family endpoints integrates the 802.11N WiFi access point is suitable for bandwidth intensive application while allowing easy installation without wiring for high speed internet.
DELT or Dual End Loop Test, is a feature that is present the 6200 Family of ADSL2+ CPEs. DELT is primarily used for reactive tests on a loop after a modem has been deployed—either to help troubleshoot a line or to capture a baseline of loop characteristics at the time of installation. Because DELT is a dual-ended test, it requires equipment that supports the DELT feature at both ends of the copper loop. While this prevents DELT from being used on loops where no CPE has yet been deployed, DELT in turn offers a deeper set of loop tests, and can provide very valuable information on the condition of a copper loop.
Default settings make for a quick and easy installation that doesn't require any configuration.
The modem, when operating in router mode, support DHCP Server/Relay/Client, NAPT, as well as RIP, dynamic routing, port forwarding, and static routing. For security, firewall functions, PAP/CHAP authentication and IP filtering are supported.
